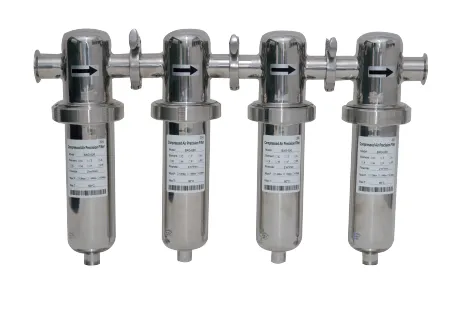

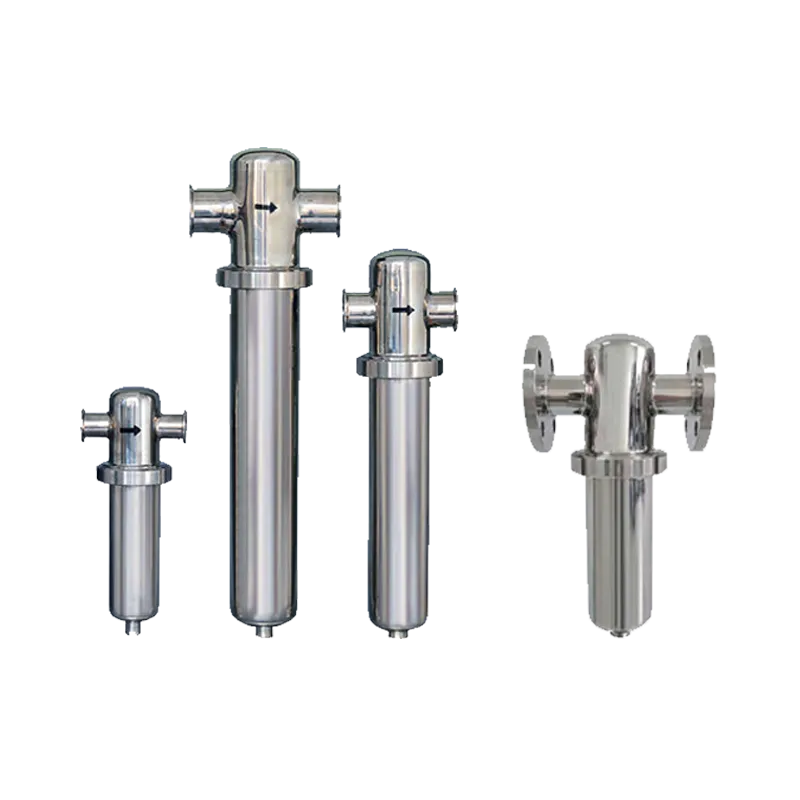

The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are mirror polished, with anti-corrosion and low resistance; it is widely used for filtering and sterilizing various industrial gases, such as semiconductor, metallurgy, medical, pharmaceutical and food chemical industries.
* Represents the filter level
Level C filtration accuracy: 3 microns, oil content: 3 ppm
Level T filtration accuracy: 1 micron, oil content: 1 ppm
Level A filtration accuracy: 0.01 micron, oil content: 0.01 ppm
Level X filtration accuracy: 0.01 micron, oil content: 0.003 ppm
Level H (activated carbon) filtration accuracy: 0.01 micron,
Oil content: 0.001ppm
Level F high-efficiency dust removal: filtration accuracy 0.1 micron
Level FF super efficient dust removal: filtration accuracy 0.01 micron

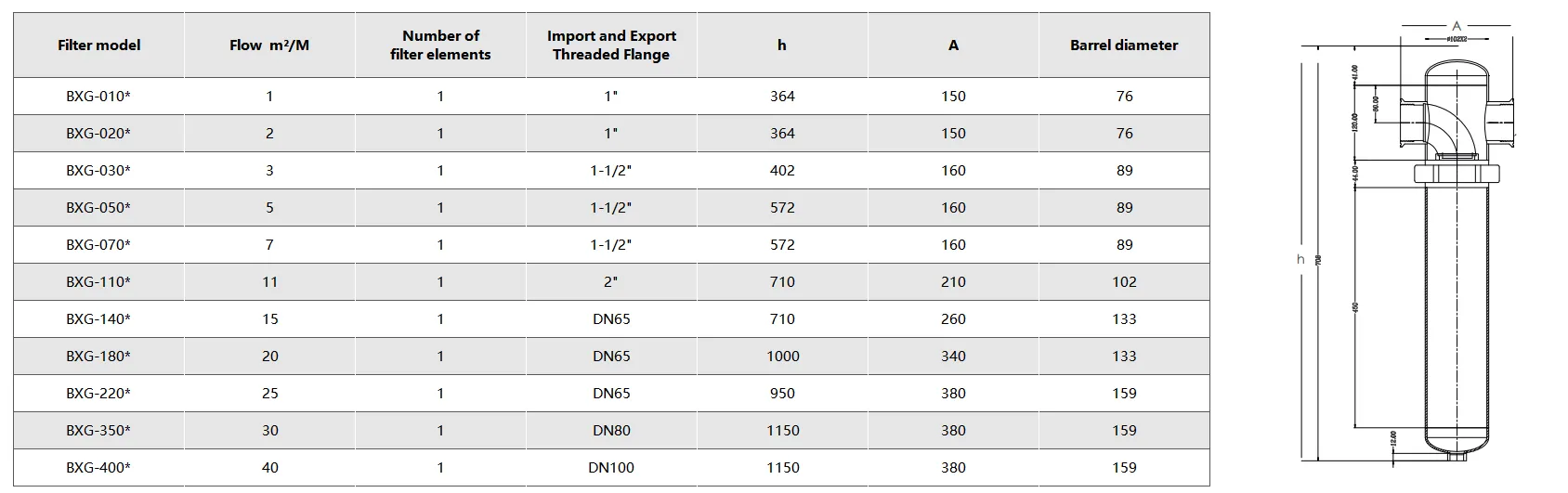

Special drawing: Customizable
