Dry Oil Free Air Compressor Manufacturer & Supplier in China
We hope to let you know our advantages and win-win cooperation in the least time.
Working pressure: 7-8bar | 102-145psig
Capacity: 3.9-46m3/min | 137-1624cfm
Workigng Power: 45-250KW
Noise: 69±3 – 74±3
Oil Free Dry Screw Compressor Advantages
- Class 0 oil-free, clean, and oil-free compressed air
- Significant energy-saving, environmental-friendly;
- IE3 motor, save your electricity cost;
- Coupling connection, more energy-saving;
- Multiple noise reduction design;
- Using 304 stainless steel pipe, it will not rust and corrode under high-temperature conditions
- No pollution, environmental protection, no oil, and carbon pollution in the air system
- Low energy consumption, low operating cost
- High efficiency, special profile design of the host. Energy-saving of ordinary motors increased by 30%
- Low noise, product structure adopts the balanced design
- An intelligent control system, reliable software design, support multiple languages

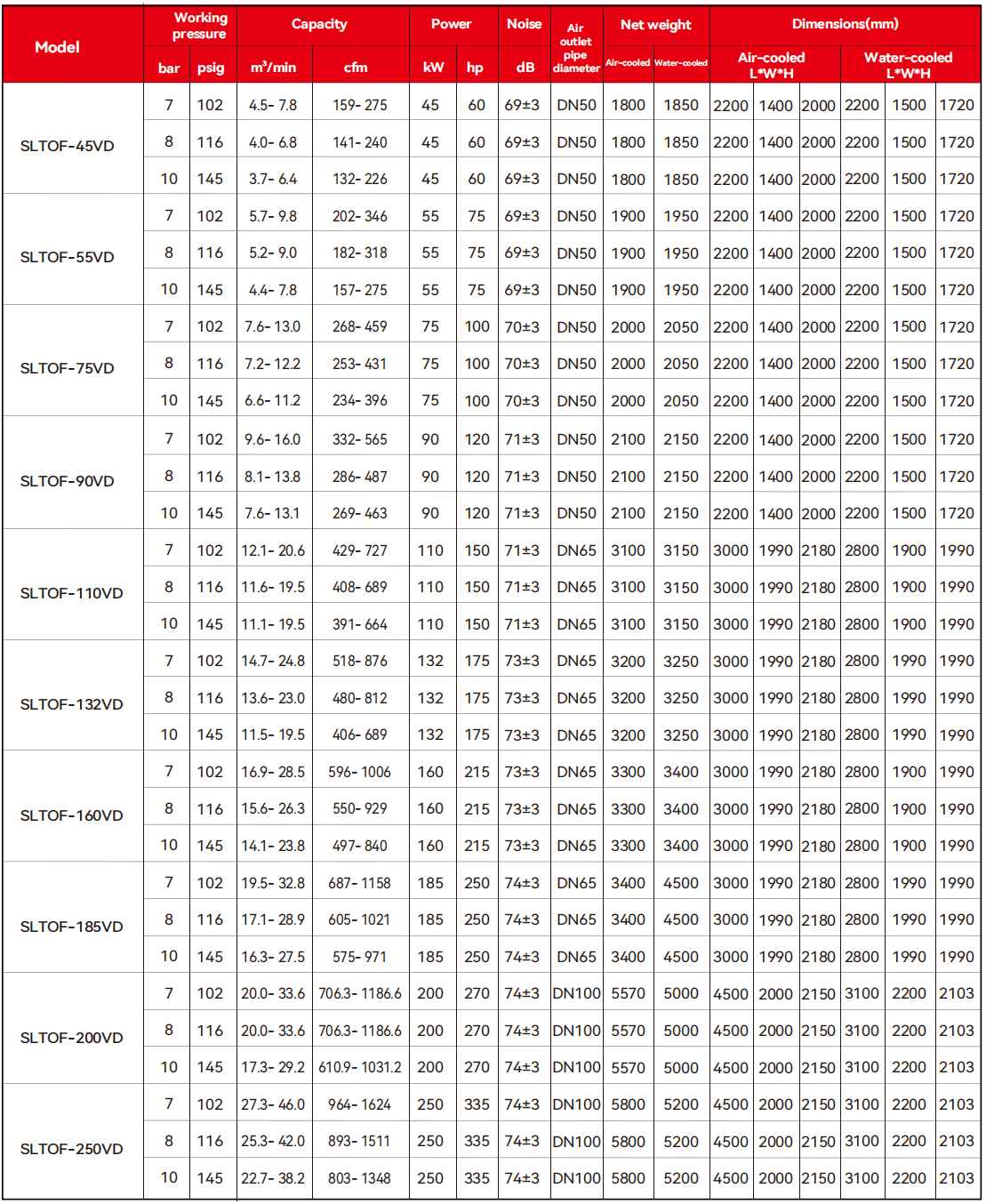

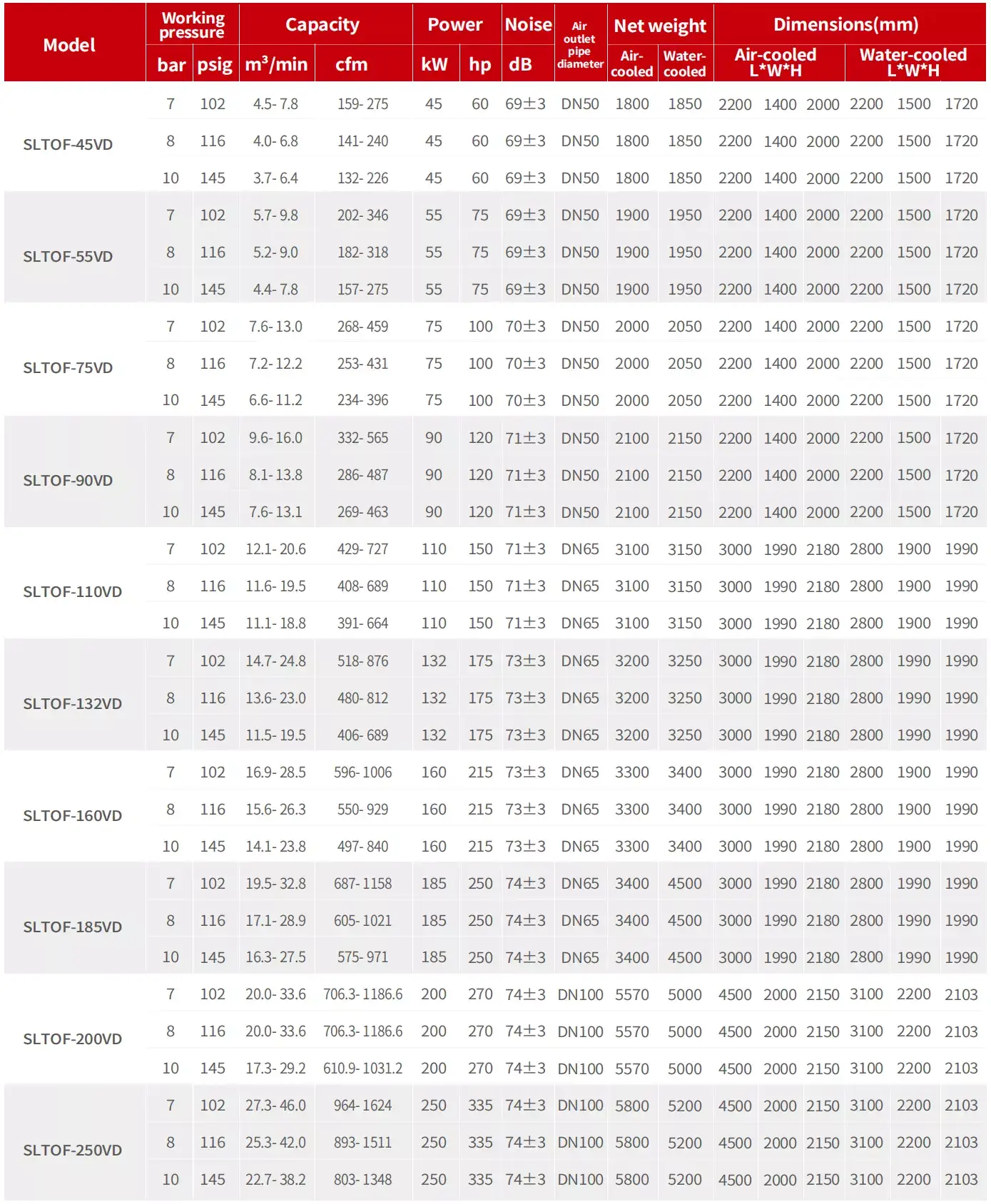

Dry Screw Compressor Parameters Table
Model | Working Pressure bar | Capacity m³/min | Power kW | Noise dB | Air outlet pipe diameter | Net weight | Dimensions L*W*H(mm) | ||
---|---|---|---|---|---|---|---|---|---|
SLTOF-45VD | 7 | 4.5-7.8 | 45 | 69±3 | DN50 | 1800 | 2200 | 1400 | 2000 |
8 | 4.0-6.8 | 45 | 69±3 | DN50 | 1800 | 2200 | 1400 | 2000 | |
10 | 3.7-6.4 | 45 | 69±3 | DN50 | 1800 | 2200 | 1400 | 2000 | |
SLTOF-55VD | 7 | 5.7-9.8 | 55 | 69±3 | DN50 | 1900 | 2200 | 1400 | 2000 |
8 | 5.2-9.0 | 55 | 69±3 | DN50 | 1900 | 2200 | 1400 | 2000 | |
10 | 4.4-7.8 | 55 | 69±3 | DN50 | 1900 | 2200 | 1400 | 2000 | |
SLTOF-75VD | 7 | 7.6-13.0 | 75 | 70±3 | DN50 | 2000 | 2200 | 1400 | 2000 |
8 | 7.2-12.2 | 75 | 70±3 | DN50 | 2000 | 2200 | 1400 | 2000 | |
10 | 6.6-11.2 | 75 | 70±3 | DN50 | 2000 | 2200 | 1400 | 2000 | |
SLTOF-90VD | 7 | 9.6-16.0 | 90 | 71±3 | DN50 | 2100 | 2200 | 1400 | 2000 |
8 | 8.1-13.8 | 90 | 71±3 | DN50 | 2100 | 2200 | 1400 | 2000 | |
10 | 7.6-13.1 | 90 | 71±3 | DN50 | 2100 | 2200 | 1400 | 2000 | |
SLTOF-110VD | 7 | 12.1-20.6 | 110 | 71±3 | DN65 | 3100 | 3000 | 1990 | 2180 |
8 | 11.6-19.5 | 110 | 71±3 | DN65 | 3100 | 3000 | 1990 | 2180 | |
10 | 11.1-19.5 | 110 | 71±3 | DN65 | 3100 | 3000 | 1990 | 2180 | |
SLTOF-132VD | 7 | 14.7-24.8 | 132 | 73±3 | DN65 | 3200 | 3000 | 1990 | 2180 |
8 | 13.6-23.0 | 132 | 73±3 | DN65 | 3200 | 3000 | 1990 | 2180 | |
10 | 11.5-19.5 | 132 | 73±3 | DN65 | 3200 | 3000 | 1990 | 2180 | |
SLTOF-160VD | 7 | 16.9-28.5 | 160 | 73±3 | DN65 | 3300 | 3000 | 1990 | 2180 |
8 | 15.6-26.3 | 160 | 73±3 | DN65 | 3300 | 3000 | 1990 | 2180 | |
10 | 14.1-23.8 | 160 | 73±3 | DN65 | 3300 | 3000 | 1990 | 2180 | |
SLTOF-185VD | 7 | 19.5-32.8 | 185 | 74±3 | DN65 | 3400 | 3000 | 1990 | 2180 |
8 | 17.1-28.9 | 185 | 74±3 | DN65 | 3400 | 3000 | 1990 | 2180 | |
10 | 16.3-27.5 | 185 | 74±3 | DN65 | 3400 | 3000 | 1990 | 2180 | |
SLTOF-200VD | 7 | 20.0-33.6 | 200 | 74±3 | DN100 | 5570 | 4500 | 2000 | 2150 |
8 | 20.0-33.6 | 200 | 74±3 | DN100 | 5570 | 4500 | 2000 | 2150 | |
10 | 17.3-29.2 | 200 | 74±3 | DN100 | 5570 | 4500 | 2000 | 2150 | |
SLTOF-250VD | 7 | 27.3-46.0 | 250 | 74±3 | DN100 | 5800 | 4500 | 2000 | 2150 |
8 | 25.3-42.0 | 250 | 74±3 | DN100 | 5800 | 4500 | 2000 | 2150 | |
10 | 22.7-38.2 | 250 | 74±3 | DN100 | 5800 | 4500 | 2000 | 2150 |
