Laser Cutting
Air compressors play a critical role in laser cutting; selecting the right compressor can improve cutting quality and efficiency while ensuring stable equipment operation.

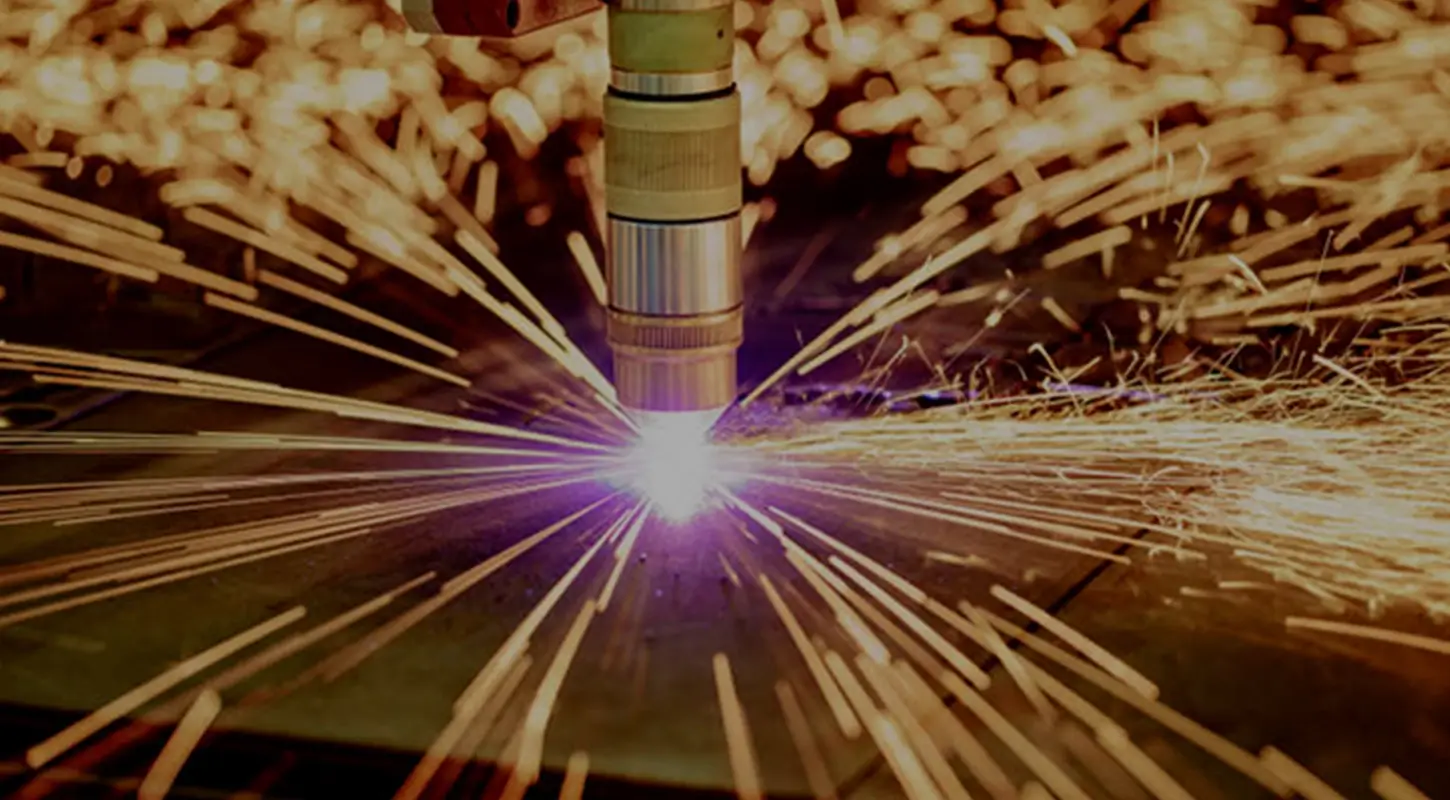

What is laser cutting?
Laser cutting is a non-contact, high-energy thermal cutting process. Its core principle involves a laser generator producing a high-density laser beam, which is then focused by a lens into an extremely small spot (typically less than 0.2 mm in diameter) to instantly melt and vaporize the workpiece material. Simultaneously, an assist gas is ejected at high velocity to blow the molten material away from the cut kerf, thereby creating a clean, narrow incision.
This process has become the mainstream choice in industries such as sheet metal fabrication, automotive manufacturing, kitchenware production, and electrical cabinet manufacturing—a status primarily attributed to the following three irreplaceable advantages:
- Exceptional Precision: Characterized by a narrow kerf (0.1–0.3 mm) and a minimal heat-affected zone, the process enables the cutting of complex contours and intricate micro-holes, eliminating the need for subsequent deburring or finishing.
- High Speed
and Efficiency: Laser cutting speeds can range from several meters to tens of meters per minute, making the process particularly well-suited for the batch processing of sheet materials. - Broad Material Compatibility: It allows for the efficient cutting of a wide range of materials, including carbon steel, stainless steel, aluminum alloys, copper, brass, and even certain non-metallic materials.
However, in actual production, the quality of the cut depends on more than just the laser source itself. A frequently overlooked—yet critically important—factor is the quality and pressure of the assist gas.
Selection of Three Auxiliary Gases
| Gas | Function | Applicable Scenarios |
| Oxygen | Promotes combustion and accelerates cutting | Thick carbon steel cutting |
| Nitrogen gas | Cooling and protecting cut surfaces from oxidation | Suitable for stainless steel, aluminum, and workpieces requiring an oxide-free finish |
| Compressed Air | Slag removal, cooling, low cost | Thin-sheet cutting, non-precision applications, cost-sensitive production |
Among these options, compressed air is the most cost-effective auxiliary gas. When cutting quality requirements are not extremely stringent—such as the need for a mirror-finish, oxide-free surface—compressed air can serve as a complete substitute for nitrogen, reducing gas consumption costs by approximately 80% per cubic meter.
The Importance of Compressed Air
Why Does Laser Cutting Require High-Quality Compressed Air?
In the laser cutting process, compressed air serves as far more than just a power source; it is a critical production element that directly impacts cutting quality and production efficiency. It primarily fulfills the following three key functions:
Cutting Assistance (The Foremost Priority):
The instant the laser beam melts the metal, high-pressure gas is required to blow away the molten material and form the kerf. Using air as an assist gas—rather than nitrogen—reduces operating costs by approximately 60% to 90%, making it currently the most economical cutting solution available.
Protection of Optical Systems:
The lenses located within the laser cutting head are extremely expensive and highly precision-engineered components. Compressed air is used to create an “air curtain” in front of the lenses, preventing smoke, dust, and debris from contaminating or burning out the optics. Compressed air containing oil or moisture can render these lenses unusable within just a few hours.
Equipment Actuation and Cooling:
Used to actuate pneumatic cylinders and clamping devices, as well as to cool the optical path system.
⚠️ Pain Points of Traditional Air Supply Solutions
If the compressed air contains water mist or oil contaminants:
- Dross Formation: Leads to rusting or yellowing of the workpiece, necessitating secondary grinding or finishing.
- Lens Contamination: Results in reduced cutting efficiency and can even cause permanent damage to the laser head (incurring extremely high repair costs).
- Nozzle Damage: Causes turbulent airflow, thereby compromising cutting precision.
Typical Applications
The Application of
Air Compressors in Laser Cutting
Powering Pneumatic Tools: Compressed air powers handheld tools such as grinders, drills, impact wrenches, spray guns, and pneumatic hammers.
Assisting Cutting Operations: In plasma and laser cutting, compressed air serves as an assist gas to enable precision machining of metals.
Cleaning and Blowing: After cutting or machining, compressed air is used to remove debris, chips, and cutting fluid from the surface of workpieces.
Surface Coating: Compressed air drives spray guns to apply paint, powder, or protective coatings to metal surfaces.
CNC Machine Control: Compressed air powers pneumatic components within CNC machines to ensure precise positioning and proper operation.
Sandblasting: Compressed air propels abrasive particles during sandblasting operations to clean and finish metal surfaces.
Metal Forming Assistance: Compressed air provides auxiliary power in certain forming processes, such as stamping and bending.
Laser Cutting Air Compressors: FAQ
What is the role of an air compressor in laser cutting?
Air compressors play a very important role in laser cutting, primarily in the following ways:
- Assisting the cutting process: High-pressure air supplied by the air compressor is ejected through the laser cutting head to blow away the slag generated during cutting from the cutting area. This not only ensures the cutting area remains clean but also maintains the clarity of the laser focus.
- Increasing cutting speed: High-pressure air effectively accelerates the metal cutting process, particularly when cutting carbon steel and stainless steel. It efficiently accelerates oxidation reactions, thereby improving cutting speed and efficiency.
- Protecting the laser head: The air forms an airflow around the laser cutting head, helping to prevent metal chips, molten material, or smoke from entering the laser head, thereby protecting the laser beam path and focusing lenses from contamination.
- Providing necessary assist gases: Different cutting materials may require different assist gases. For example, oxygen is used to improve the cutting speed and quality of carbon steel, while nitrogen is typically used for cutting materials such as aluminum and stainless steel to prevent oxidation.
How Does an Air Compressor Affect Laser Cutting Results?
The impact of an air compressor on laser cutting results is primarily reflected in the following aspects:
Airflow Stability: If the air supply is unstable, it may result in burrs, uneven cuts, or difficulty in removing slag during the cutting process. A stable airflow helps maintain good cutting results.
Cutting Quality: The quality of the compressed air (e.g., clean, oil-free gas) directly affects cutting quality. If the air contains moisture or oil, it may result in stains or uneven oxidation layers on the cut surface, affecting cutting precision and results.
Laser Head Protection: If the air supply is insufficient, slag and metal debris may accumulate around the laser head, causing focus shift or damage to the laser head. Therefore, maintaining an appropriate airflow is crucial.
Do air compressors used for laser cutting require regular maintenance?
Yes, air compressors require regular maintenance to ensure long-term, stable operation:
Replace filters: Air compressors require regular inspection and replacement of air filters, especially during high-frequency use. Filters remove particulates, oil, and moisture from the air to maintain air quality.
Inspect air lines: Regularly inspect the compressor’s air lines and connections to ensure there are no leaks or loose fittings, thereby preventing air waste and insufficient supply.
Clean the equipment: Keep the equipment clean to prevent the buildup of dust and debris. This helps extend the equipment’s service life and reduce the likelihood of malfunctions.
Check the compressor oil: If using an oil-lubricated compressor, check the oil level regularly to maintain proper lubrication and reduce friction-related wear.
How does a malfunctioning air compressor affect laser cutting?
If the air compressor malfunctions, cutting quality may deteriorate significantly. Common effects include:
Incomplete cutting: Insufficient air pressure prevents slag from being effectively removed during the cutting process, which may result in uneven cut edges and even affect subsequent processing steps.
Damage to the laser head: Insufficient air protection may allow metal debris and slag to accumulate around the laser head, causing it to overheat or become damaged, which affects the entire cutting process.
Unstable cutting: Fluctuating air pressure can cause variations in cutting speed, which in turn affects cutting quality and may even result in crooked cut lines or workpiece deformation.
Promptly identifying and repairing air compressor malfunctions is crucial for maintaining high-quality cutting and minimizing downtime.
What characteristics should an air compressor used with a laser cutting machine have?
Stability: The air compressor must provide stable air pressure to prevent fluctuations from affecting cutting accuracy.
High Flow Rate and High Pressure: The compressor must deliver sufficient flow rate and pressure to meet the demands of the laser cutting machine, especially when cutting thick plates.
Dry Air: To prevent moisture from affecting the laser cutting machine and the material, the compressed air must be dry; typically, a dehumidifier is required.
Low Noise and High Efficiency: A high-efficiency, low-noise compressor helps reduce noise pollution in the work environment.
