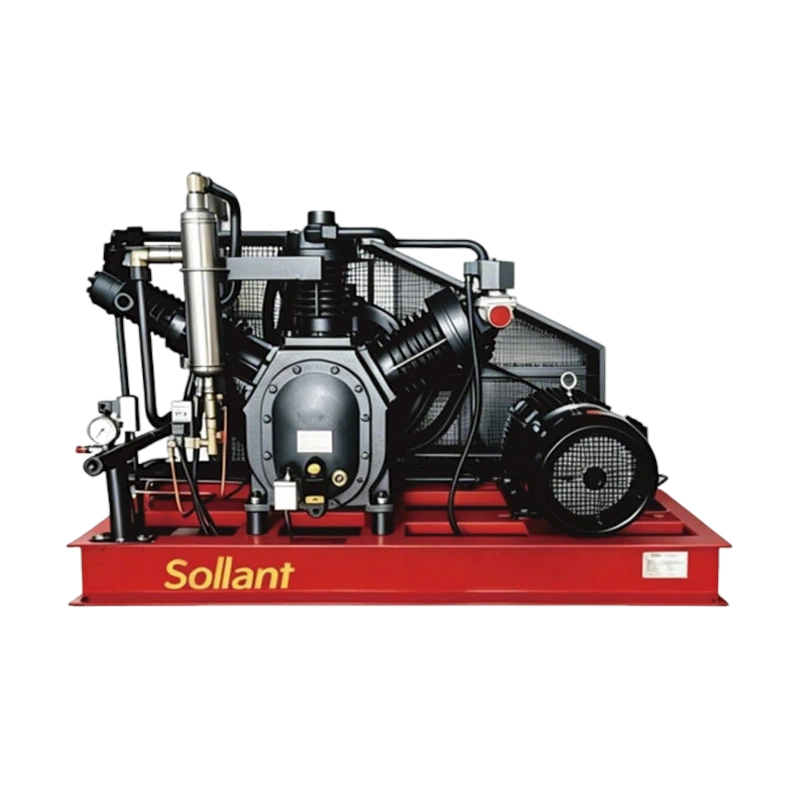

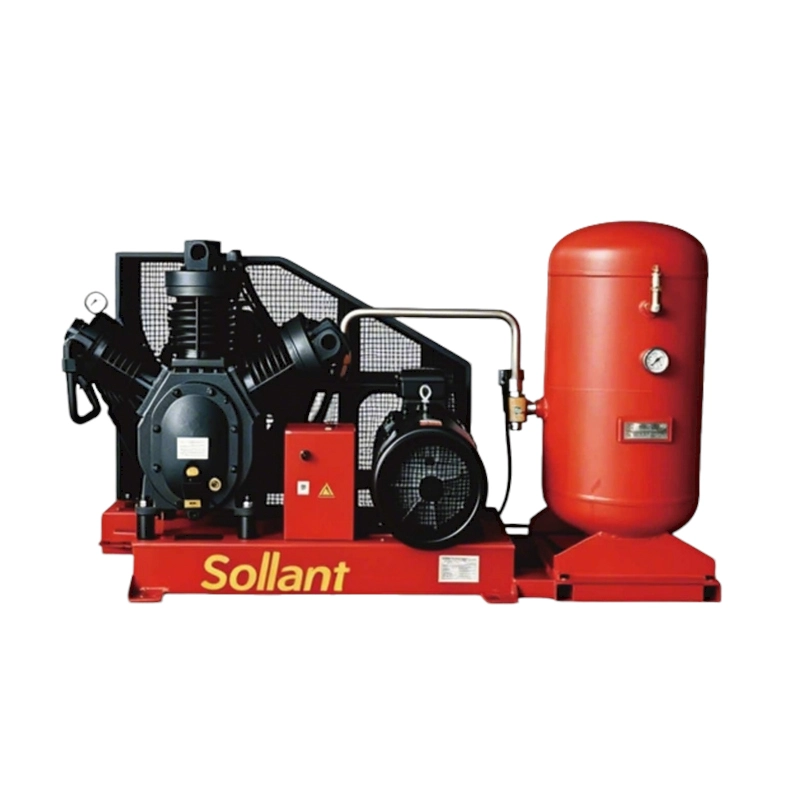

High Pressure Piston Air Compressor
This high-pressure piston air compressor series delivers stable ultra-high-pressure air with excellent pressure-holding capacity. Using proven multi-stage reciprocating technology, it runs reliably under heavy load and harsh conditions. Available in two-stage and three/four-stage configurations, with oil-lubricated or oil-free options.
Key advantages:
- Continuous or intermittent duty capability
- Robust cast-iron construction + low-speed design for long service life
- Complete protection: overpressure, overheating, overload
- Ideal for mining, borehole drilling, industrial pressure testing, fire-fighting systems, cylinder filling and breathing-air applications
Features
1. Super High Pressure Output
Stable ultra-high pressure air supply with a wide adjustment range – perfectly fits high-pressure industrial applications.
2. Strong Durability & Stable Performance
Heavy-duty cast iron structure, low-speed operation design, and vibration-resistant mounting. Less vibration, longer service life, and steady continuous running.
3. High Energy Saving Efficiency
Optimized compression structure reduces power loss. Intelligent pressure control cuts idle power consumption, lowering daily operating costs.
4. Premium Clean Air Quality
Oil-free option available – meets ISO air purity standards. No oil contamination, ideal for food, pharmaceutical, electronics, and precision industries.
5. Easy Maintenance & Low Cost
Simple modular structure. All core parts are easy to access and inspect. Standardized spare parts allow quick replacement and low maintenance expense.
6. Excellent Heat Dissipation System
Built-in efficient cooling structure keeps working temperature under control – avoids overheating failures and extends machine lifespan.
Piston vs. Screw
Both technologies have distinct strengths. The correct choice depends on your required pressure, duty cycle and air quality needs.
The high-pressure piston compressor is the definitive choice above 40 bar. Rotary screw technology is not economically viable above this threshold. If your process requires 100, 200 or 300 bar, the piston machine is not one option among several — it is the correct answer.
Below 40 bar, the decision depends on duty cycle and air quality requirements. For continuous production lines running at 70–80% capacity or higher, rotary screw offers lower noise and better energy efficiency. For intermittent or variable-demand high-pressure applications, and wherever ultra-high pressure is required, the piston machine delivers unmatched reliability.
Choose the piston compressor when:
✅ Working pressure exceeds 40 bar — screw technology is not available above this range
✅ Oil-free air is required for breathing air, food, pharma or electronics applications
✅ The application is intermittent — pressure testing, cylinder filling, batch processes
✅ Operating in harsh, remote or thermally extreme environments with limited servicing access
Frequently Asked Questions
Choose a high pressure piston compressor when:
- Required working pressure exceeds 40 bar
- Oil-free air is needed (breathing air, food, pharmaceutical, electronics)
- The application is intermittent (pressure testing, cylinder filling, batch processes)
- The site has harsh, remote or high-temperature conditions with limited maintenance access
Screw compressors are better for continuous, high-flow applications below 40 bar.
Yes. We offer oil-free high pressure piston compressors that meet ISO 8573 air purity standards. These are ideal for breathing air systems, food processing, pharmaceutical production, electronics manufacturing and other contamination-sensitive applications.
Typical applications include:
- Mining and drilling
- Industrial pressure testing
- Fire fighting systems
- Breathing air / respirator filling
- Cylinder filling stations
- Machinery processing and special high-pressure processes
Standard protections include overpressure safety valves, overheating protection, overload protection, and interstage safety devices. Many models also feature automatic shutdown, phase sequence protection and emergency stop functions.
Maintenance is straightforward thanks to the modular design. Core components (valves, coolers, filters) are easily accessible. Standardized spare parts are available, and daily inspection is simple. Oil-lubricated models require regular oil and filter changes; oil-free models have different maintenance intervals focused on seals and filters.
Yes. We can customize pressure, capacity, drive type (electric or diesel), cooling method (air-cooled or water-cooled), control system (manual, automatic or PLC), and enclosure according to your specific requirements. Tell us your required flow rate, working pressure and application environment for a tailored solution.

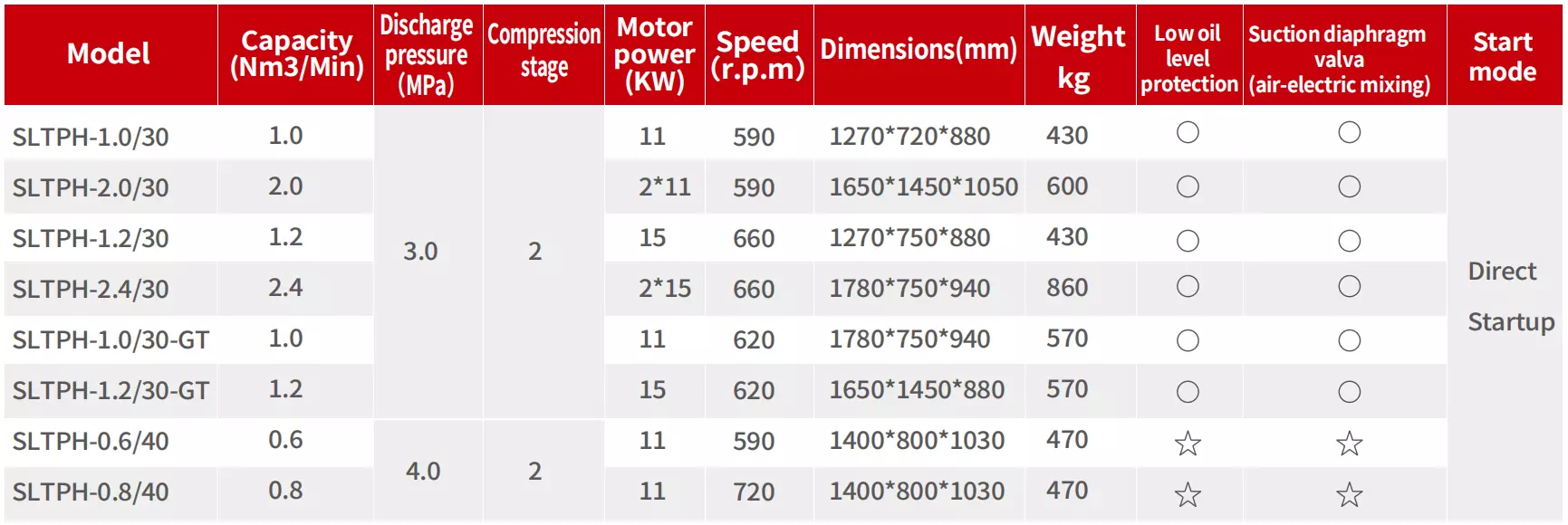

Two-stage: Suitable for medium-high pressures (typically up to around 40–100 bar depending on design), simpler structure and lower cost.

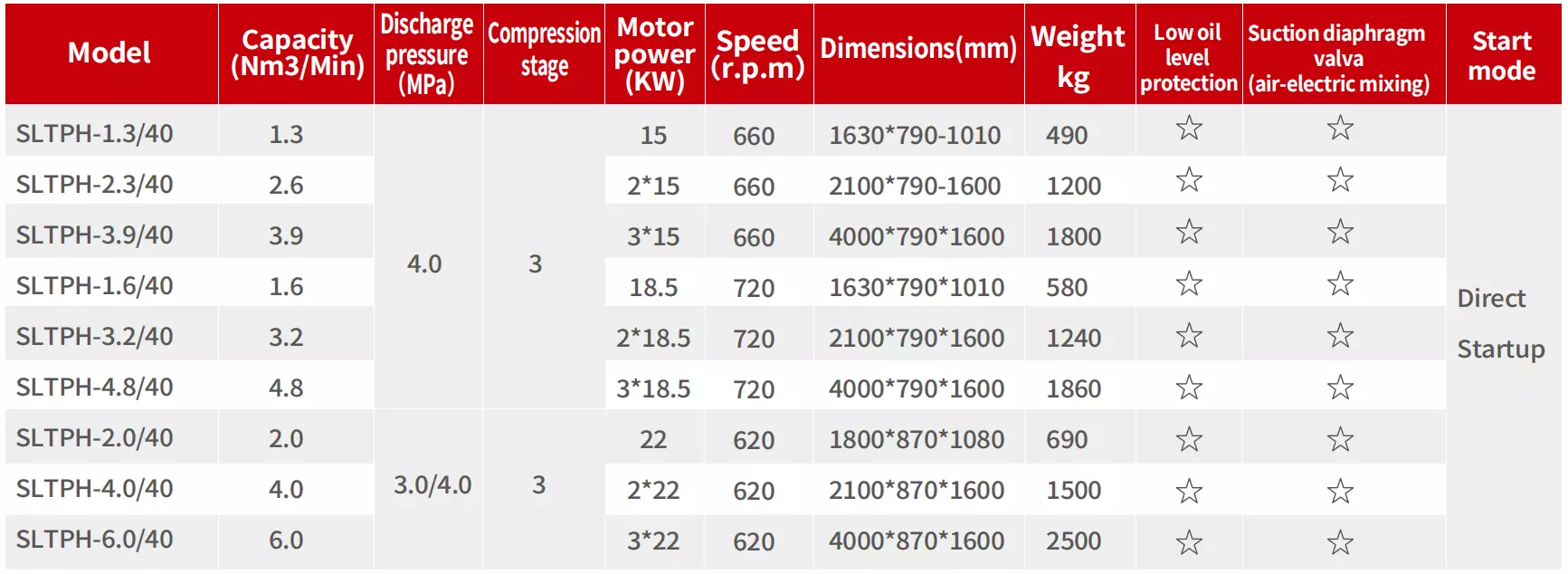

Three-stage / Four-stage: Designed for higher pressures (100–300 bar), better efficiency, lower operating temperatures and longer component life under continuous high-pressure duty.
Yes. We offer 24/7 technical support, installation guidance, commissioning assistance and spare parts supply. Our team can help you select the right model based on your pressure, flow and duty cycle requirements.
