Reasons and Solutions for Substandard Dew Point Temperature in Refrigerated Dryers

Introduction

Refrigerated dryers play a vital role in providing high-quality compressed air. They cool compressed air, turning water vapor into liquid water, which reduces the air dew point and ensures dryness. However, achieving a stable and compliant dew point is not always easy. Many industries face the issue of a substandard dew point, which can lead to equipment failures, product defects, and even safety hazards.

Understanding the causes of dew point failure and implementing effective solutions is crucial for maintaining equipment efficiency and product quality. This article explores the impacts, causes, diagnostic methods, and solutions for substandard dew point in refrigerated dryers.

1. Impact of Substandard Dew Point

A high dew point means excess moisture in the compressed air system, leading to several problems:

1.1 Product Quality Issues

• Contamination Risk: Residual moisture can contaminate products, especially in industries like food, pharmaceuticals, and electronics.

• Process Disruptions: In spraying, coating, and painting, moisture causes defects such as blistering, poor adhesion, or corrosion.

1.2 Equipment Failures

• Corrosion: Water in compressed air can rust pipes, valves, and tanks, shortening equipment lifespan.

• Lubrication Breakdown: Moisture dilutes lubricating oil, reducing its effectiveness and accelerating wear and tear.

• Electrical Failures: Water can enter electrical components, leading to short circuits, insulation failures, or leakage.

1.3 Increased Energy Consumption

• Higher Load: If the dryer struggles to achieve the target dew point, it works harder, consuming more energy.

• Frequent Cycling: The system may frequently start and stop, further increasing power usage.

1.4 Safety Risks

• Ice Blockage: In cold environments, moisture can freeze inside pipes, leading to blockages and equipment shutdowns.

• Explosion Risks: In flammable and explosive environments, excessive moisture can contribute to dangerous reactions.

2. Causes of Substandard Dew Point

Several factors can cause dew point failure in refrigerated dryers:

2.1 Refrigeration System Issues

✔️ Insufficient Refrigerant:

• Cause: Leakage or poor sealing reduces refrigerant levels.

• Effect: Lower cooling capacity, higher evaporation temperature, and incomplete air cooling.

✔️ Evaporator Frosting:

• Cause: Excess moisture or dirt causes ice buildup.

• Effect: Reduced heat exchange efficiency and poor cooling.

✔️ Expansion Valve Malfunction:

• Cause: Blockages or incorrect valve settings.

• Effect: Restricted refrigerant flow, reduced cooling performance.

✔️ Condenser Issues:

• Cause: Dirty condenser or cooling system failure.

• Effect: Poor heat dissipation, reduced refrigeration efficiency.

2.2 Cooling System Failures

✔️ Low Cooling Water Flow:

• Cause: Blocked pipes or pump failure.

• Effect: Inefficient cooling, higher dew point.

✔️ High Cooling Water Temperature:

• Cause: Improper settings or cooling tower malfunction.

• Effect: Ineffective air cooling, moisture remains in compressed air.

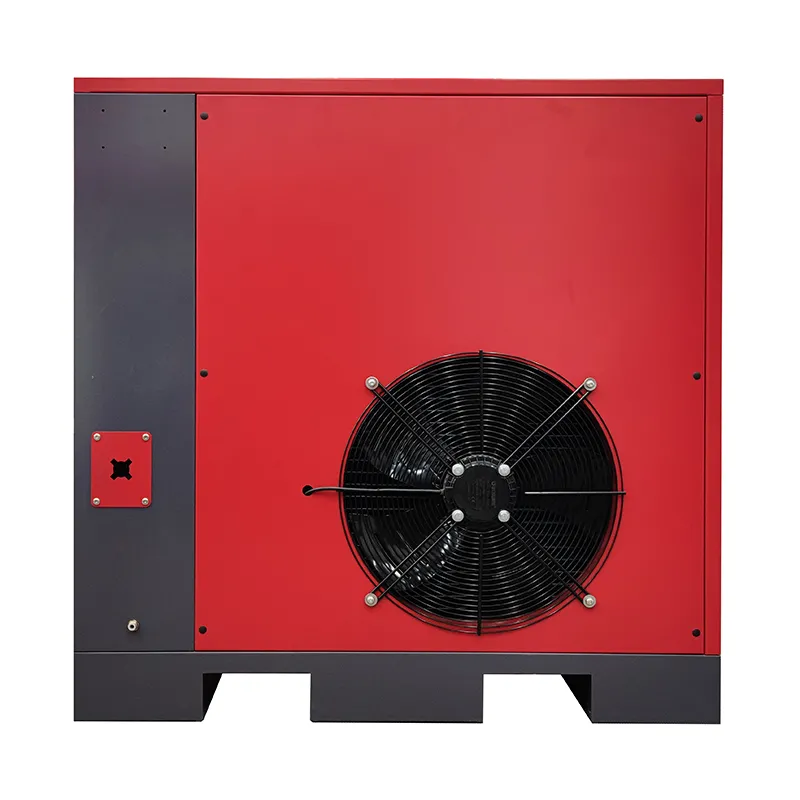

✔️ Cooling Fan Failure:

• Cause: Motor or fan blade damage.

• Effect: Insufficient cooling air, rising dew point.

2.3 Control System Malfunctions

✔️ Temperature Sensor Fault:

• Cause: Sensor damage or calibration errors.

• Effect: Incorrect temperature readings, improper system control.

✔️ Pressure Sensor Malfunction:

• Cause: Faulty sensor causing inaccurate pressure readings.

• Effect: Poor system regulation, inconsistent dew point.

✔️ PLC (Programmable Logic Controller) Failure:

• Cause: Software errors or module failures.

• Effect: Malfunctioning temperature and pressure adjustments.

2.4 Other Contributing Factors

✔️ High Inlet Air Temperature:

• Cause: Overheated air entering the dryer.

• Effect: Excessive load, ineffective cooling, increased dew point.

✔️ Overloaded Equipment:

• Cause: Exceeding rated capacity.

• Effect: The system fails to cool air effectively.

✔️ High Ambient Temperature:

• Cause: Poor ventilation or extreme environmental heat.

• Effect: Increased equipment operating temperature, reducing efficiency.

3. Diagnosing Dew Point Issues

To resolve dew point failures, follow these steps:

3.1 Observe Equipment Performance

🔹 Monitor Key Parameters: Check pressure, temperature, and airflow for abnormalities.
🔹 Visual Inspection: Look for leaks, excessive vibration, or unusual noises.

3.2 Check the Refrigeration System

🔹 Inspect Refrigerant Levels: Use a leak detector and refill refrigerant if needed.
🔹 Check for Evaporator Frosting: Defrost the evaporator if excessive ice is present.
🔹 Examine the Expansion Valve: Ensure it is clear of blockages and properly adjusted.
🔹 Clean the Condenser: Remove dirt and oil buildup to improve cooling efficiency.

3.3 Evaluate the Cooling System

🔹 Assess Cooling Water Flow: Check for blockages and ensure the water pump functions properly.
🔹 Check Cooling Water Temperature: Adjust settings and inspect the cooling tower.
🔹 Inspect the Cooling Fan: Ensure it is operating correctly without unusual noises or vibrations.

3.4 Inspect the Control System

🔹 Test Sensors: Calibrate or replace faulty temperature and pressure sensors.
🔹 Review PLC Functionality: Check for software errors or module failures.
🔹 Verify Actuators: Ensure solenoid and regulating valves are working correctly.

3.5 Assess External Factors

🔹 Measure Inlet Air Temperature: Reduce it if it exceeds recommended levels.
🔹 Check Equipment Load: Ensure operation stays within rated capacity.
🔹 Monitor Ambient Temperature: Improve ventilation or cooling if necessary.

4. Solutions for Dew Point Issues

Once the problem is identified, apply these fixes:

4.1 Refrigeration System Repairs

✔️ Refill Refrigerant: If levels are low, recharge promptly.
✔️ Fix Leaks: Locate and repair refrigerant leaks.
✔️ Clean the Evaporator: Remove frost or dirt buildup.
✔️ Adjust the Expansion Valve: Ensure proper refrigerant flow.
✔️ Service the Condenser: Clean it to restore efficiency.

4.2 Cooling System Repairs

✔️ Improve Water Flow: Clear blockages and check the water pump.
✔️ Optimize Water Temperature: Adjust cooling settings based on system needs.
✔️ Fix Cooling Fans: Replace or repair faulty fans.

4.3 Control System Fixes

✔️ Repair Sensors: Calibrate or replace malfunctioning sensors.
✔️ Check PLC Software: Update or repair the program if needed.
✔️ Inspect Actuators: Ensure all regulating devices function properly.

4.4 Preventive Measures

✔️ Regulate Inlet Air Temperature: Use pre-coolers or heat exchangers.
✔️ Manage Equipment Load: Avoid exceeding the rated processing capacity.
✔️ Improve Ventilation: Enhance cooling systems in high-temperature environments.

Conclusion

Maintaining a stable dew point in refrigerated dryers is critical for compressed air quality and production efficiency. By identifying the root causes, applying the correct solutions, and performing regular maintenance, businesses can prevent dew point failures and ensure smooth operations.

By following these guidelines, industries can reduce downtime, enhance productivity, and lower operational costs.
