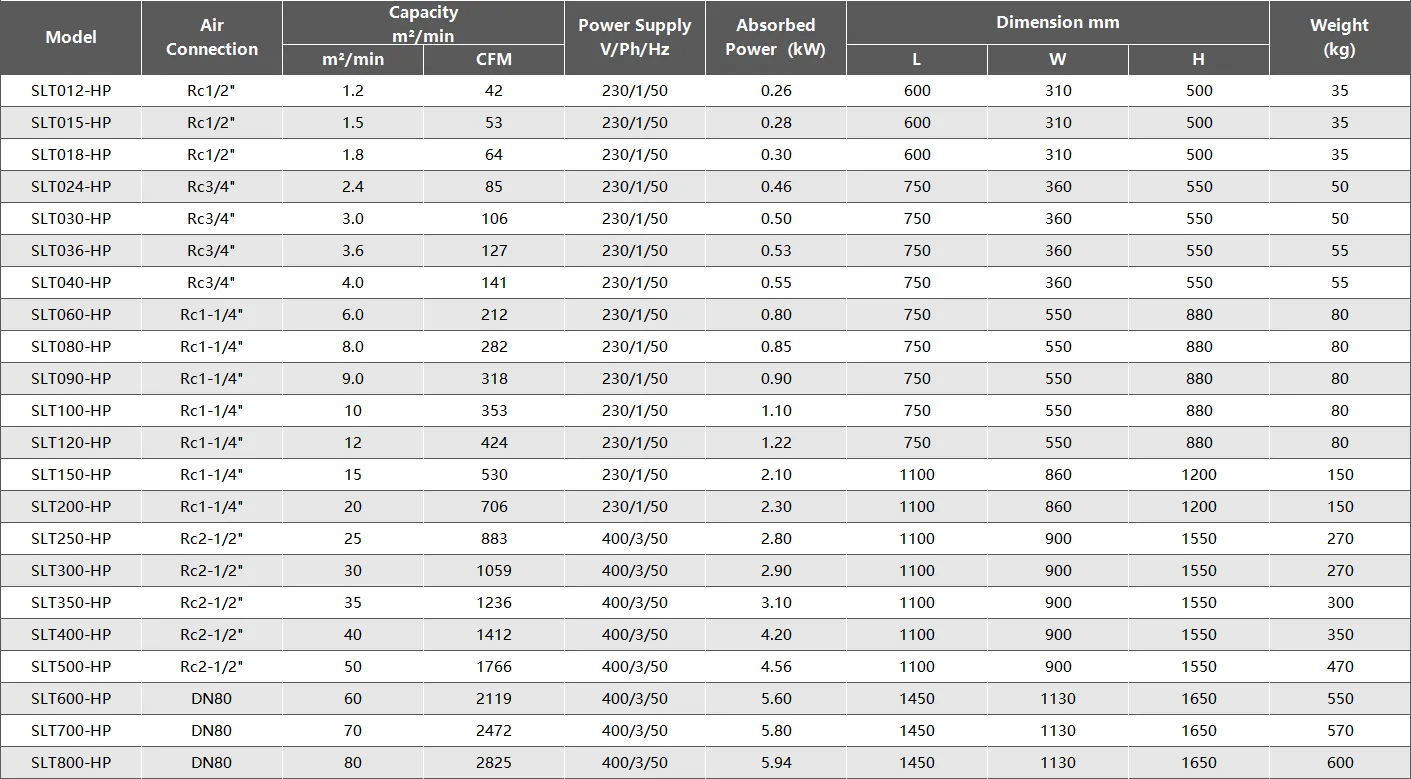

Capacity: 1.2~80 m3/min
Max. working pressure: ≤4.5MPa (45barg)
Max. inlet temperature: 60℃
Max. ambient temperature: 50℃
Min. ambient temperature : 5℃
Max. cooling water temperature: 35℃
Cooling type: air-cooled
Power supply: 220V/1Ph/50Hz/60Hz (12-HP ~ 150-HP)
380V/3Ph/50Hz/60Hz (200-HP ~ 800-HP)
Rated working pressure: 4.0MPa
Inlet temperature: 38℃
Ambient temperature: 38℃
Cooling water temperature: 32℃

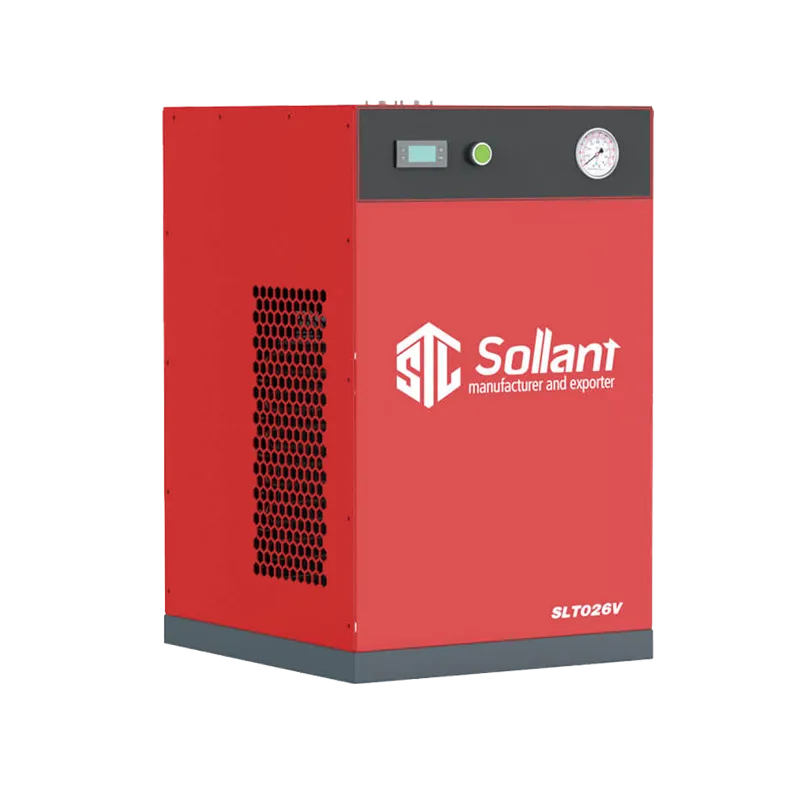

High Pressure Refrigeration Air Dryer
Capacity: 1.2~80 m3/min

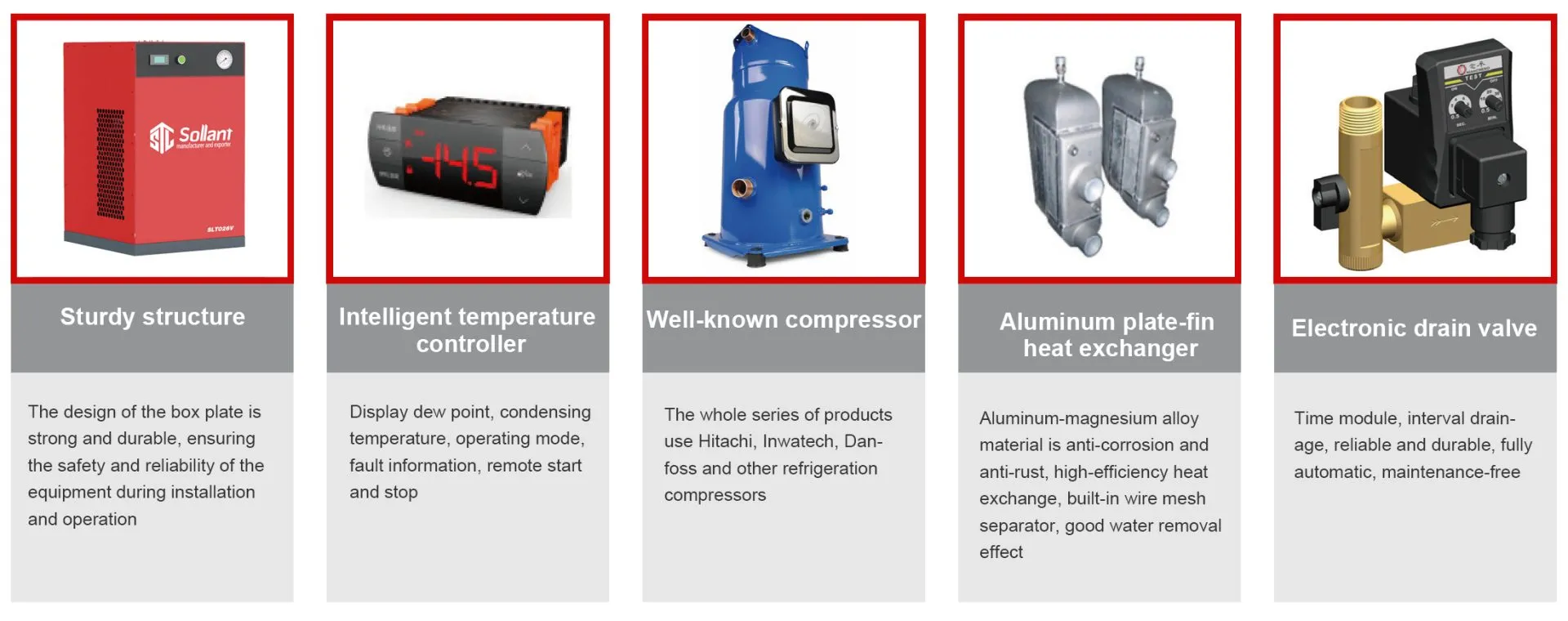

» Powerful cooling systems
The refrigeration dryers in high-pressure series units feature powerful cooling systems. These include a high-quality refrigerant compressor, generously-dimensioned heat exchanger surfaces, as well as cleverly designed cooling airflow. This combination therefore ensures dependable operation even at high temperatures and guarantees stable pressure dew points at all times.
» Flow optimized piping
The smaller the pressure differential within a dryer, the more efficient its performance. All High-Pressure dryers operate with exceptionally low-pressure differential values thanks to quality, flow-optimized stainless steel piping.
» HIGH EFFICIENT DRAIN - High-pressure TYPE
The 40bar High Pressure Series dryer is equipped with a high-pressure DRAIN ensuring even more efficient condensate removal without any pressure loss and also saving energy. The electronic condensate drain is optional for the 50-bar version.
Extreme Conditions, Exceptional Solutions: High Pressure Refrigeration Air Dryers
Compressed air is often referred to as the “fourth utility” in industrial settings, alongside electricity, water, and gas. Its significance cannot be overstated; it powers a vast array of tools and processes essential to countless industries. From manufacturing and construction to pharmaceuticals and food production, compressed air is the lifeblood that keeps machinery and operations running smoothly. However, to harness the full potential of compressed air, ensuring its quality is paramount.
While compressed air is a versatile workhorse, it encounters a variety of challenges in extreme conditions. High pressures, soaring temperatures, and hostile environments can wreak havoc on compressed air systems. Moisture, the silent adversary, is particularly troublesome in these conditions. It can lead to equipment corrosion, compromise product quality, and increase operational costs. In extreme conditions, the stakes are higher, making moisture control and air quality maintenance even more critical.
Understanding Extreme Conditions in Industrial Environments
Extreme conditions within industrial environments encompass a range of challenging factors that push the limits of equipment and systems. These conditions can include:
- High Pressures: In certain industrial processes, compressed air is subjected to pressures well above the standard range. This extreme pressure can stress components and demand specialized equipment.
- Elevated Temperatures: Extreme temperatures, whether scorching or freezing, can affect both the efficiency and integrity of compressed air systems. In high-temperature environments, air compressors and associated components can experience overheating and reduced performance.
Extreme conditions are prevalent in various industries and applications, including:
- Oil and Gas Exploration: Deep-sea drilling rigs and oil refineries operate in high-pressure and high-temperature environments. Compressed air systems here are exposed to harsh conditions, requiring robust solutions.
- Aerospace: Aerospace manufacturing involves high-pressure machining and extreme temperature variations. Precision and reliability in compressed air are essential for aircraft production.
- Foundries: Foundries produce metal castings at extremely high temperatures, where compressed air plays a crucial role in various processes.
- Petrochemical Plants: These facilities deal with extreme pressures and temperatures, making moisture control vital for equipment longevity and safety.
Extreme conditions can have a profound impact on compressed air systems and equipment:
- Moisture Challenges: In high-temperature environments, moisture in compressed air can lead to more rapid corrosion and reduced equipment lifespan. It can also affect product quality in manufacturing processes.
- Energy Efficiency: Extreme conditions can strain compressed air systems, leading to increased energy consumption and operational costs.
- Reliability Concerns: Equipment exposed to extreme pressures and temperatures may experience more frequent breakdowns and maintenance requirements, reducing overall reliability.
Understanding the challenges posed by extreme conditions is essential to appreciate the significance of solutions like high-pressure refrigeration air dryers, which are engineered to thrive in these demanding industrial settings.
High-Pressure Refrigeration Air Dryers: The Technology
High-pressure refrigeration air dryers are exceptional pieces of equipment designed to tackle the moisture challenges presented by extreme conditions. These dryers are at the forefront of ensuring the quality and reliability of compressed air in demanding industrial settings.
High-pressure refrigeration air dryers operate on the same fundamental principle as their standard counterparts but with enhanced capabilities to withstand the rigors of extreme conditions. Here’s a simplified overview of their operation:
- Compression: In high-pressure environments, air is compressed to meet the specific needs of industrial processes. This compression significantly increases the air’s temperature.
- Cooling: The hot, compressed air is then passed through a cooling system. High-pressure refrigeration air dryers excel in this phase, efficiently cooling the air even in high-temperature conditions.
- Condensation: As the air cools, moisture vapor within it condenses into liquid water. High-pressure refrigeration air dryers are equipped to handle this condensed moisture effectively.
- Separation: The condensed moisture is separated from the compressed air and safely removed from the system. This phase ensures that the compressed air leaving the dryer is virtually moisture-free.
One of the unique challenges that high-pressure refrigeration air dryers excel at is high-temperature dew point control. In extreme conditions where compressed air can reach scorching temperatures, standard dryers may struggle to achieve the required dew point levels. High-pressure refrigeration air dryers are engineered to handle these challenges.
- Precise Dew Point Control: These dryers can achieve and maintain precise dew point levels, even in high-temperature environments. This is crucial for preventing moisture-related issues like corrosion and equipment malfunction.
- Reliability in Extreme Temperatures: High-pressure refrigeration air dryers are built with robust components and insulation to ensure reliable performance in extreme temperature conditions.
In essence, these dryers are tailored solutions that rise to the occasion when conventional equipment may fall short. They provide the critical moisture control needed to maintain the integrity and efficiency of compressed air systems in the face of high pressures and temperatures.
Benefits of High-Pressure Refrigeration Air Dryers
High-pressure refrigeration air dryers are not just solutions; they are enablers of efficiency and reliability in the most demanding industrial environments. Let’s delve into the manifold benefits they bring:
A. Energy Efficiency and Cost Savings in High-Pressure Applications
1. Reduction in Energy Consumption
High-pressure refrigeration air dryers are champions of energy efficiency. In extreme conditions, where every bit of energy counts, these dryers shine. They achieve this through:
- Precision Cooling: Efficient cooling mechanisms ensure that energy isn’t wasted in the cooling process, even in high-temperature environments.
- Optimized Operation: These dryers are designed to run at peak efficiency, minimizing energy wastage and reducing operational costs.
2. Decreased Maintenance Costs
Maintenance costs in extreme conditions can be exorbitant. High-pressure refrigeration air dryers mitigate these costs by:
- Extending Equipment Lifespan: Effective moisture control prevents accelerated corrosion and wear and tear, resulting in longer-lasting equipment that requires fewer repairs or replacements.
- Reduced Downtime: With fewer breakdowns and issues related to moisture, downtime is minimized, and production can operate smoothly.
B. Enhanced Equipment Reliability and Lifespan in Extreme Conditions
High-pressure environments can be harsh on equipment. These dryers, however, enhance equipment reliability in the following ways:
- Corrosion Prevention: By maintaining low dew points, they prevent moisture-induced corrosion, preserving the integrity of critical components.
- Reduced Stress: Equipment operates under less stress, as moisture-related issues are significantly reduced, leading to a longer lifespan.
C. Improved Productivity and Reduced Downtime
In extreme conditions, any disruption can be costly. High-pressure refrigeration air dryers contribute to:
- Smoother Processes: Moisture control ensures consistent and efficient processes, leading to improved productivity.
- Reduced Downtime: With fewer equipment breakdowns and maintenance requirements, downtime is reduced, enhancing overall operational efficiency.
In the harshest of industrial environments, high-pressure refrigeration air dryers emerge as not just solutions but saviors. They reduce energy consumption, cut maintenance costs, enhance equipment reliability, boost productivity, and keep operations running seamlessly. The evidence is not just in the numbers but in the stories of industries that have transformed their operations through the adoption of these exceptional dryers.
Applications and Industries
High-pressure refrigeration air dryers are versatile tools, but their true prowess shines in specific industries and applications where extreme conditions are the norm. Here, we explore the domains where these dryers excel:
- Oil and Gas: The oil and gas industry, especially offshore drilling rigs and refineries, operates in high-pressure, high-temperature environments. High-pressure refrigeration air dryers ensure reliable compressed air quality for critical processes.
- Aerospace: Aerospace manufacturing involves precision machining at high pressures and temperatures. Dryers play a pivotal role in ensuring the consistency and reliability required for aircraft production.
- Foundries: Foundries, which produce metal castings, operate in extreme conditions due to the intense heat required for metalworking processes. Moisture control is essential to prevent defects in castings.
- Petrochemical Plants: Petrochemical facilities often deal with high-pressure and high-temperature processes. In these environments, high-pressure refrigeration air dryers are indispensable for moisture control and equipment protection.
In each of these industries, high-pressure refrigeration air dryers find specific applications:
- Oil and Gas: Offshore drilling rigs rely on compressed air for various tasks, including pneumatic tools and control systems. Dryers ensure that the air used in these critical operations is free from moisture, preventing corrosion and equipment damage.
- Aerospace: Aircraft assembly demands precision, and any variation in air quality can impact the structural integrity of components. These dryers provide the necessary air quality for tasks such as riveting, painting, and component assembly.
- Foundries: Foundries use compressed air for sandblasting, cooling, and controlling pneumatic equipment. Dryers prevent moisture from interfering with these processes and protect air-powered tools.
- Petrochemical Plants: Compressed air in petrochemical plants is used for instrumentation, process control, and operating valves. High-pressure refrigeration air dryers ensure the reliability of these critical functions.
The Impact of Moisture Control on Product Quality and Process Efficiency
Moisture control achieved through high-pressure refrigeration air dryers has a direct impact on product quality and process efficiency. In extreme conditions, where variations can be detrimental, moisture control:
- Enhances Product Quality: Industries such as aerospace and foundries rely on precise measurements and processes. Moisture-induced defects can lead to costly rework or scrap. Dryers prevent such quality issues.
- Optimizes Process Efficiency: In petrochemical plants, any disruption in instrumentation and control systems can have serious consequences. Moisture control ensures that these systems operate efficiently, contributing to the overall safety and productivity of the plant.
In summary, high-pressure refrigeration air dryers are not just essential tools in extreme conditions; they are guardians of product quality and process efficiency. They provide the reliability and consistency needed to uphold industry standards and meet the stringent demands of these specialized applications.
Selection and Installation
Factors to Consider When Selecting High-Pressure Refrigeration Air Dryers
- Flow Rates and Capacity
Selecting the right high-pressure refrigeration air dryer begins with understanding the specific needs of the application. Flow rates and capacity are paramount considerations:
Matching Capacity: The dryer’s capacity should align with the compressed air system’s demand. A mismatch can result in inadequate moisture removal or excessive energy consumption.
Sizing for Peaks: Consider peak usage periods; the dryer should handle the maximum flow rate required during these times.
- Dew Point Requirements in High-Pressure Environments
High-pressure environments may necessitate lower dew points to prevent moisture-related issues. It’s critical to:
Specify Dew Point Levels: Determine the required dew point based on the application’s sensitivity to moisture. High-pressure refrigeration air dryers are capable of achieving precise dew point levels even in extreme conditions.
In the most challenging industrial landscapes, high-pressure refrigeration air dryers stand as indispensable allies. They bring forth a multitude of benefits:
- Energy Efficiency: These dryers reduce energy consumption and emissions, contributing to operational cost savings and environmental responsibility.
- Enhanced Reliability: By preventing moisture-related issues, they extend equipment lifespan and reduce downtime, ensuring continuous operations.
- Improved Productivity: The consistent quality of compressed air directly translates into improved productivity and product quality.
Industries operating in extreme conditions face unique challenges. The adoption of high-pressure refrigeration air dryers is more than a choice; it’s a strategic imperative. Their transformative impact on efficiency, cost-effectiveness, and sustainability is a clarion call for all industrial sectors to embrace these solutions.
As industries evolve and push the boundaries of what’s possible in extreme conditions, one enduring truth remains: moisture control is paramount. High-pressure refrigeration air dryers not only meet but exceed the demands of these environments. They safeguard equipment, conserve resources, and align with sustainability goals.
In conclusion, these dryers are more than machines; they are enablers of progress. They are the silent guardians of efficiency and reliability in extreme conditions, ensuring that industries continue to thrive, innovate, and meet the challenges of tomorrow head-on.
