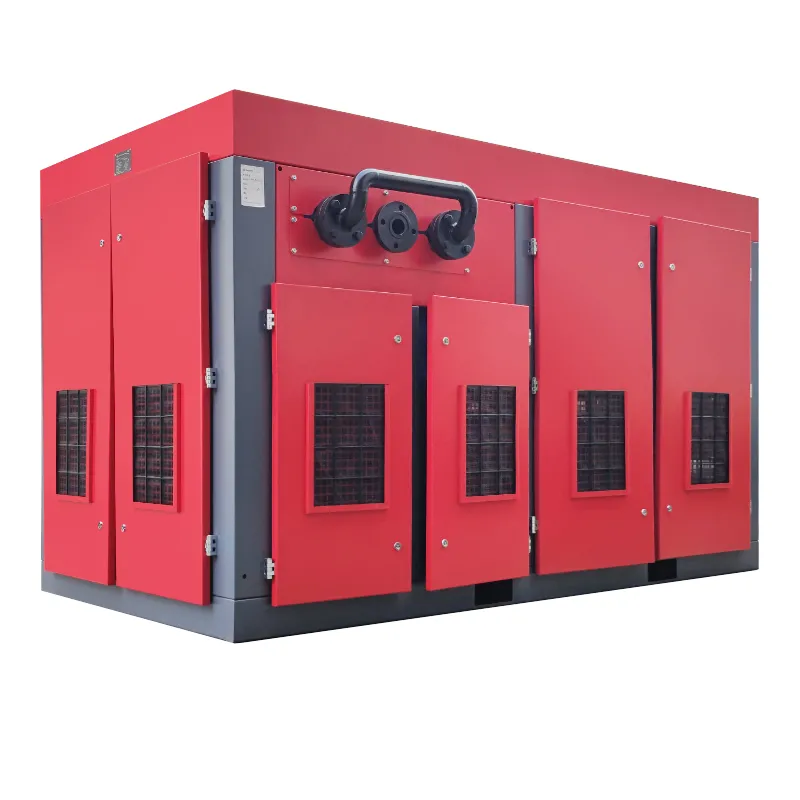

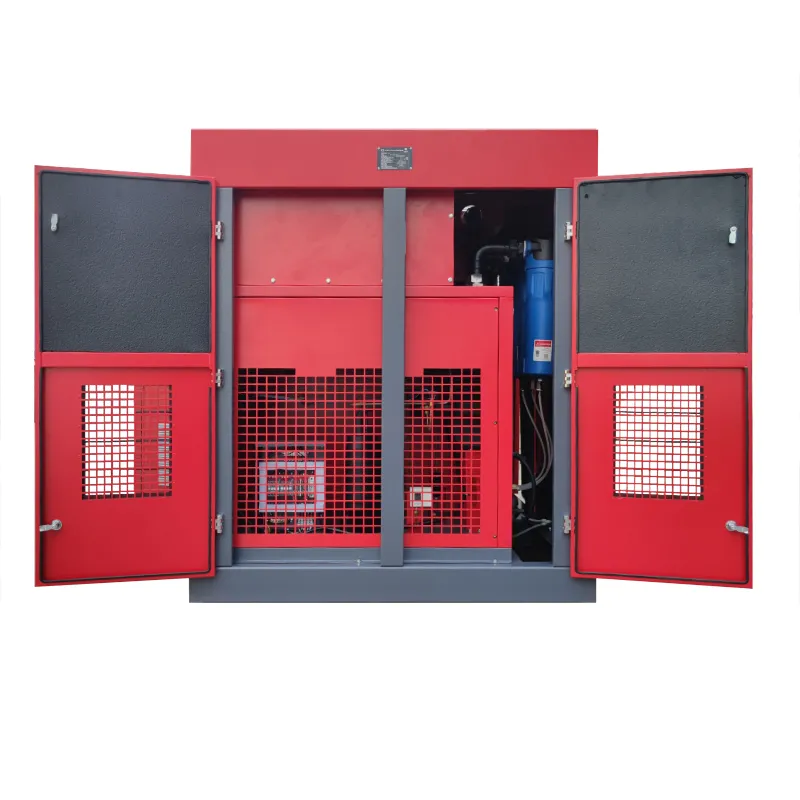

Compressed Air Refrigeration Dryer: Principle, Process & Key Benefits

A compressed air refrigeration dryer uses refrigeration technology to cool compressed air below its dew point, forcing water vapor to condense and be removed. Its core components include a refrigerant compressor, condenser, expansion valve, and evaporator. The process flows through air filtration, precooling, refrigeration, condensation, water separation, reheating, and final discharge. This workflow ensures low dew points, protects downstream equipment, and meets diverse industrial requirements efficiently.

1. Working Principle of a Refrigeration Dryer

A refrigeration dryer relies on a closed‑loop refrigeration cycle to chill the incoming air below its dew point. In detail:

1. Refrigeration Cycle

   • A refrigerant compressor raises the refrigerant’s pressure and temperature.

   • The hot gas then releases heat in the condenser, turning into a high‑pressure liquid.

   • After passing through an expansion valve, the refrigerant becomes a low‑pressure, low‑temperature mixture.

   • In the evaporator, it absorbs heat from the compressed air, dropping the air temperature rapidly.

2. Dew‑Point Control

   • As air temperature falls below the dew point, water vapor condenses into droplets.

   • These droplets adhere to the evaporator surfaces and drain out, leaving drier air behind.

2. Step‑by‑Step Process Flow

The refrigeration dryer’s operation divides into seven clear stages:

2.1 Air Entry and Filtration

• Feed: High‑pressure air enters the dryer inlet.

• Filter: A pre‑filter removes oil, particulates, and debris, protecting internal heat exchangers.

2.2 Precooling

• Heat Exchange: Filtered air passes through an air‑to‑air precooler.

• Benefit: This lowers inlet temperature and reduces load on the refrigeration system.

2.3 Refrigeration Cooling

• Evaporator: Precooked air contacts the cold refrigerant, further dropping its temperature to about 3–5 °C.

• Result: Rapid cooling forces moisture out of the air.

2.4 Condensation and Collection

• Condensation: Water vapor turns into liquid on cold surfaces.

• Separation: A built‑in separator (centrifugal or gravity‑based) collects condensed water.

2.5 Automatic Drainage

• Discharge: An auto‑drain valve expels collected water without losing compressed air.

• Advantage: Prevents manual drain errors and minimizes air loss.

2.6 Reheating

• Air‑to‑Air Reheater: Dried, cold air passes again through the precooler but in reverse flow.

• Purpose: It recovers some heat, raising the air temperature to prevent pipe‑line condensation.

2.7 Final Discharge

• Dry Air Outlet: The now‑dry, slightly warmed air exits the dryer, ready for downstream use.

• Outcome: Consistent low dew point and moisture‑free air.

3. Key Benefits for Industrial Use

• Effective Moisture Removal
  By dropping air temperature below dew point, refrigeration dryers typically achieve dew points of +2 °C to +10 °C, suitable for most applications.

• Improved Equipment Reliability
  Dry air prevents corrosion, reduces valve sticking, and extends tool life.

• Energy Efficiency
  Modern dryers feature variable‑speed fans and thermostat controls to match load demands, saving power.

• Low Maintenance
  With few moving parts, these units require minimal upkeep: filter changes, refrigerant checks, and drain inspections.

• Wide Applicability
  They serve industries from food & beverage to automotive, plastics, and textile processing.

4. SEO Best Practices and Keywords

To rank well for “compressed air refrigeration dryer”, integrate these related phrases naturally throughout your site:

• refrigeration compressed air dryer

• industrial air dryer system

• dew point control dryer

• low dew point compressed air

• rotary screw dryer

Additionally, optimize:

• Meta Title: “Compressed Air Refrigeration Dryer | Low Dew Point Industrial Air Dryer”

• Meta Description: “Learn how a compressed air refrigeration dryer removes moisture by chilling air below the dew point. Explore its working cycle, key benefits, and applications.”

5. Conclusion

A compressed air refrigeration dryer delivers reliably low‑dew‑point air by combining refrigeration cycles with precise heat exchange and automatic drainage. Through efficient moisture removal, energy savings, and robust maintenance profiles, it safeguards production lines and downstream equipment across diverse industries.

Implement these principles to ensure your compressed air stays dry, protects valuable assets, and upholds product quality.
