Air Compressor with Dryer

In today’s highly industrialized society, compressed air has become an indispensable power source for many industries. From powering sophisticated automated robotic arms to providing clean air for sterile production environments, and supporting the operation of complex medical equipment, compressed air has a wide and diverse range of applications. However, this seemingly simple form of energy has a profound impact on production efficiency, product quality, and even equipment lifespan due to its inherent quality. Have you ever been troubled by impurities such as moisture, oil, and particles in compressed air? This impure compressed air, like invisible corrosives and pollutants, constantly erodes your production line and reduces your competitiveness.

In this context, an air compressor with dryer is no longer just an option, but a necessity—an “essential solution” in the pursuit of a superior production environment and product quality. It is not merely a machine that generates compressed air, but an intelligent system integrating advanced purification technology, designed to solve the problem of compressed air purity at its source, building a stable, efficient, and low-risk production ecosystem for you.

Chapter 1: In-depth Analysis of the Root Causes and Hazards of Compressed Air Pollution

To understand the value of air compressor with dryers, we first need to deeply understand the sources of compressed air pollution and the specific hazards it causes.

1.1 The “Invisible Killer” of Compressed Air Pollution: Moisture

Air itself is a huge reservoir, containing a large amount of water vapor. When ambient air is drawn into an air compressor for compression, its volume shrinks drastically, causing the water vapor in the air to become highly concentrated. According to the principles of physics, within the same volume, as the pressure increases, the saturated water vapor content of the air will significantly decrease. This means that during the compression process, when the air temperature drops, the supersaturated water vapor will condense into liquid water. This phenomenon is particularly evident inside compressed air pipes, air tanks, and pneumatic components, forming “water” that we can see with the naked eye.

Hazards of Moisture in Industrial Production:

Accelerated Equipment Corrosion and Wear: Liquid water is one of the main culprits of metal corrosion. Once precision metal parts inside pneumatic valves, cylinders, pneumatic motors, etc., come into contact with moisture, they will oxidize and rust more quickly. Rusty parts hinder movement, increase friction, accelerate wear, and shorten equipment lifespan. More seriously, rust particles can enter subsequent equipment with the airflow, causing secondary pollution and wear.

Frequent Pneumatic Component Failures: Moisture washes away the lubricating oil film inside pneumatic components, leading to increased friction and impaired movement. In cold environments, moisture can even freeze, completely blocking air passages or freezing moving parts, causing production interruptions. Frequent failures of critical components such as solenoid valves, cylinders, and pressure reducing valves directly result in decreased production efficiency and soaring maintenance costs.

A “Hidden Killer” of Product Quality: In industries with extremely high cleanliness requirements, such as food processing, pharmaceutical manufacturing, precision electronics, semiconductor production, and spray painting, the presence of moisture is absolutely unacceptable.

Food and Beverages: Moist compressed air provides a breeding ground for bacteria and mold, directly contaminating food and beverages, causing product spoilage, shortened shelf life, and even food safety issues.

Pharmaceutical Manufacturing: In sterile production environments, compressed air must meet medical-grade standards. Moisture can not only carry microorganisms but also react with certain drug components, affecting efficacy and stability.

Precision Electronics and Semiconductors: Moisture is a direct cause of short circuits and corrosion in electronic components. In the ultra-clean environments of semiconductor manufacturing, even trace amounts of moisture can lead to chip defects, causing significant economic losses.

Spray Painting Industry: Moist compressed air can cause defects such as blisters, pitting, and orange peel on painted surfaces, severely affecting product appearance quality and increasing rework rates.

Invisible Energy Efficiency Losses: Moist compressed air increases fluid resistance during pipeline transportation, leading to pressure loss. To maintain the required terminal pressure, the compressor has to consume more electricity, indirectly increasing the company’s operating costs.

1.2 Unignorable Threats: Oil and Solid Particles

Besides moisture, ambient air also contains a large amount of oil vapor, dust, pollen, microbial spores, and other solid particles. Even with oil-free compressors, oil from the surrounding environment can enter the system through the air inlet.

Hazards of Oil Contamination:

Pneumatic System Contamination:Oil can adhere to the inside of pneumatic components, forming a viscous sludge that clogs air passages and affects the normal operation of the components.

Product Contamination:In industries such as food, pharmaceuticals, and electronics, the consequences of oil contamination are similar to those of moisture, potentially leading to product scrap or defects.

Respiratory Hazards:In scenarios involving direct contact with the human body (such as dental clinics and diving air filling), oil contamination in compressed air poses a serious threat to human health.

Hazards of Solid Particles:

Abrasion and Clogging:Dust, rust particles, and other solid impurities act as abrasives for pneumatic components. They accelerate the wear of moving parts such as cylinders and valves and can clog tiny air holes and nozzles, leading to equipment malfunctions.

Product Defects:In fields such as painting and precision manufacturing, even tiny particles can leave scratches or defects on product surfaces.

Chapter 2: air compressor with dryers: Deep Purification and Integrated Design

Faced with the aforementioned severe challenges, the traditional combination of independent compressors and independent dryers, while addressing the issues, suffers from numerous shortcomings in terms of efficiency, space, cost, and ease of management. It is against this backdrop that air compressor with dryers have emerged, representing a significant innovation in the field of industrial gas purification.

2.1 Core Advantages of Integrated Design

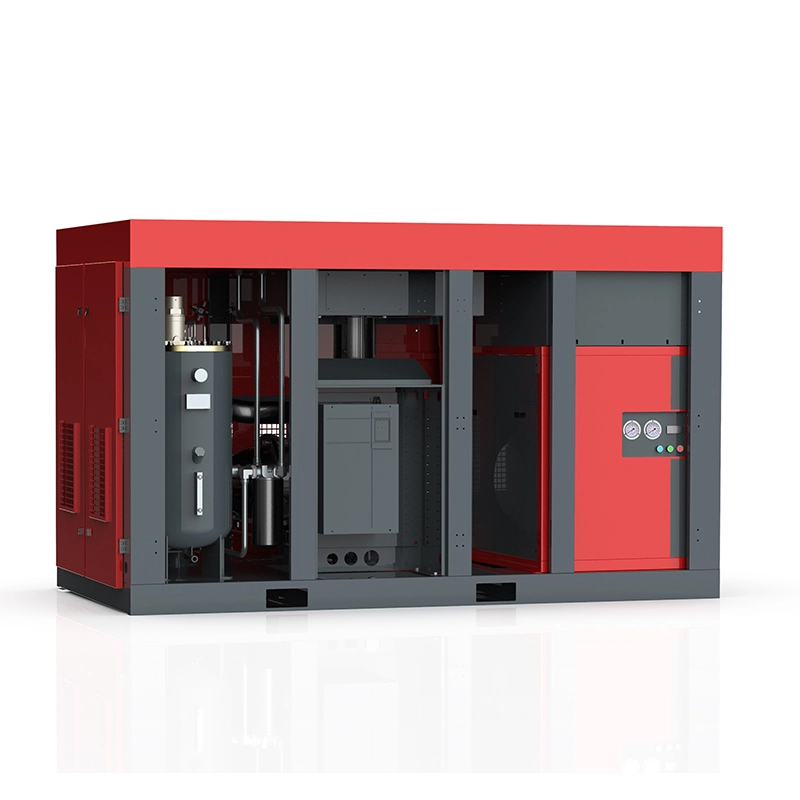

air compressor with dryers are not simply a combination of compressor and dryer; rather, they are optimized integrated systems. This integrated concept brings several advantages:

Extremely Compact, Space-Saving: This design efficiently integrates core functional modules (compressor unit, motor, cooling system, drying module, filtration system, control unit, etc.) into a compact chassis. For modern factories where space is at a premium, this translates to a significant increase in space utilization. There is no need to reserve extra space for separate dryers and filters, and complex piping connections are eliminated.

Pre-Optimized Performance Matching: From the initial design stage, manufacturers precisely match the type and processing capacity of the drying module based on parameters such as the compressor’s discharge volume and operating pressure. This pre-optimization ensures perfect synergy between the dryer and compressor, avoiding poor drying performance or energy waste caused by improper dryer selection.

Simplified Installation and Maintenance: Due to its integrated design, users do not need complex on-site piping connections and electrical wiring, significantly shortening the installation cycle and reducing installation costs and the risk of errors. Routine maintenance is also more centralized and convenient, typically requiring only a single maintenance guide.

Higher Energy Efficiency: The integrated design allows for overall system energy optimization. For example, some advanced models utilize the heat generated during compression to assist the drying process (such as regeneration in adsorption dryers), thereby achieving lower energy consumption.

Single-Point Responsibility, Worry-Free After-Sales Service: When all components come from the same manufacturer, users only need to contact one supplier in case of problems, avoiding the hassle of shifting responsibility between different equipment suppliers and ensuring more efficient after-sales service.

2.2 Detailed Explanation of Core Drying Technologies

air compressor with dryers primarily integrate the following two drying technologies:

2.2.1 Refrigerated Air Dryer

This is the most common and widely used drying technology. Its working principle is similar to that of a household refrigerator:

Cooling: Moist, high-pressure compressed air first enters a heat exchanger, exchanging heat with already dried, low-temperature compressed air, thus pre-cooling it.

Deep Cooling: Next, the pre-cooled compressed air enters a refrigeration evaporator. Here, the refrigerant (such as R134a) evaporates and absorbs heat, further reducing the temperature of the compressed air to 2°C to 10°C (pressure dew point). During this process, most of the water vapor in the air condenses into liquid water droplets.

Gas-Water Separation: The condensed water droplets are completely separated by a high-efficiency gas-water separator and discharged from the system through an automatic drain valve.

Temperature Recovery: The dried, low-temperature compressed air passes through the heat exchanger again, exchanging heat with the incoming moist air, causing the temperature to rise and preventing condensation on the outside of the pipes. Advantages: Relatively low operating costs, simple maintenance, low energy consumption, suitable for most industrial applications (such as spraying, machining, general pneumatic tools, etc.), and can reduce pressure dew point to 2°C to 10°C.

Limitations: Cannot achieve ultra-low dew points, not suitable for applications with extremely high dryness requirements (such as dew point requirements below 0°C).

2.2.2 Adsorption Dryer (Desiccant Air Dryer)

When lower dew points are required, adsorption dryers are the preferred choice. They remove water vapor through the principle of physical adsorption:

Adsorption Dehydration: Compressed air passes through a tower filled with hygroscopic materials (such as alumina, molecular sieves, etc.). These adsorbents have strong hygroscopic capabilities, able to “capture” water vapor in the air and adsorb it onto their surfaces.

Regeneration Cycle: After the adsorbent becomes saturated with moisture, it needs to be regenerated to restore its hygroscopic capacity. Adsorption dryers typically employ a dual-tower structure, with one tower performing adsorption while the other undergoes regeneration. The main regeneration methods are:

Heatless Regeneration:Utilizes a small amount of dried compressed air to expand and depressurize, using its dryness and low-pressure environment to remove moisture from the adsorbent.

Micro-Heat Regeneration:Combines heating and drying air to improve regeneration efficiency.

Heated Regeneration (Blower-Air Regeneration):Uses an external heater and blower to heat the adsorbent, then uses ambient air to remove moisture. It does not consume dried compressed air, resulting in higher energy efficiency.

Advantages:Can provide very low pressure dew points (-20°C to -70°C or even lower), meeting the needs of applications with extremely high air dryness requirements (such as precision electronics, semiconductors, medical, and instrumentation air).

Limitations:Equipment cost is relatively high. Heatless and micro-heat regeneration methods consume a certain amount of dried compressed air (“purge air”), resulting in slightly lower energy efficiency. While heated regeneration does not consume purge air, it requires additional electrical energy for heating.

Some high-end air compressor with dryers may integrate one or two drying technologies (e.g., a refrigerated dryer for pre-treatment and an adsorption dryer for deep drying) depending on the user’s specific needs.

2.3 Integrated Filtration System

In addition to drying, high-quality air compressor with dryers also have built-in or reserved comprehensive filtration interfaces, typically including:

Pre-filter: Removes larger solid particles and liquid water.

Precision filter: Removes particles of 0.01 microns and larger and oil mist.

Activated carbon filter: Removes oil vapor and odors, achieving ultra-high cleanliness requirements.

The integration of these filters ensures that the output compressed air is not only dry but also highly clean, truly fulfilling the promise of “pure air.”

Chapter 3: Application Scenarios: Which Industries Can’t Do Without air compressor with dryers?

Having understood the technical principles, let’s take a closer look at the practical applications and irreplaceable nature of air compressor with dryers in various industries.

3.1 Automobile Manufacturing and Painting Industry

In automobile manufacturing, painting is a crucial step determining the final product’s appearance quality. Compressed air is used to drive the spray gun, evenly atomizing and spraying the paint onto the car body surface.

Requirements: The compressed air used for painting must be 100% water-free and oil-free; otherwise, serious defects such as fisheyes, pitting, bubbles, runs, and color differences will occur on the paint surface, requiring significant time and cost for rework or even scrapping.

Solution: The clean, dry air provided by air compressor with dryers ensures perfect atomization and uniform adhesion of the paint, significantly improving painting quality and efficiency, and reducing the scrap rate.

3.2 Food and Beverage Processing Industry

The food and beverage industry has extremely high requirements for hygiene standards in its production environment. Compressed air is widely used in multiple stages such as mixing, conveying, packaging, and filling.

Requirements: Compressed air in contact with food must meet food-grade standards, being water-free, oil-free, and sterile to prevent bacterial growth and product contamination.

Solution: air compressor with dryers (typically equipped with adsorption dryers and multi-stage filters, including sterilizing filters) provide ultra-clean compressed air, ensuring food safety and compliance with international hygiene standards such as HACCP.

3.3 Pharmaceutical and Medical Device Manufacturing

The pharmaceutical industry has the most stringent regulatory requirements for production environment and process control. Compressed air is crucial in scenarios such as drug mixing, tableting, capsule filling, medical device assembly, and hospital operating room air supply.

Requirements: Compressed air must meet pharmaceutical-grade standards, with an extremely low dew point, and be completely sterile, oil-free, and particulate-free to prevent cross-contamination and drug deterioration.

Solution: High-end air compressor with dryers (typically integrating adsorption dryers, multi-stage precision filters, and medical-grade sterilizing filters) are one of the core pieces of equipment in pharmaceutical production lines, ensuring product quality and patient safety.

3.4 Electronics and Semiconductor Industry

In the production of electronic chips and semiconductor devices, even the smallest contaminants can cause product failure. Compressed air is used for cleanroom purging, air-bearing systems, vacuum adsorption, etc.

Requirements: Extreme cleanliness and dryness are required. Dew points are typically required to be below -40°C, and particulate matter, moisture, and oil content must be near zero.

Solution: air compressor with dryers and ultra-precision filtration systems are standard equipment in cleanrooms and semiconductor production lines.

3.5 Precision Machining and Instrumentation Air

In CNC machine tools, laser cutting, and precision measuring instruments, compressed air is used to clean parts, drive precision cylinders, power pneumatic chucks, and provide control air for instruments.

Requirements: Clean and dry compressed air prevents precision parts from rusting and jamming, ensuring measurement accuracy and equipment lifespan. The stability and purity of instrumentation air directly affect the reliability of control systems.

Solution: air compressor with dryers effectively protect precision equipment, reduce failure rates, and improve machining accuracy.

3.6 Chemical and Petrochemical Industries

In chemical production, compressed air is commonly used for conveying powders, stirring liquids, providing instrument control gas, and serving as a protective gas in certain reaction processes.

Requirement: Dry compressed air can prevent pipeline blockage and interference from moisture in chemical reactions.

Solution: Select an air compressor with dryer that meets specific dew point requirements based on the specific process requirements.

Chapter 4: How to Choose the Right Air Compressor with Dryer for Your Needs?

Choosing a suitable air compressor with dryer requires considering several factors to ensure its performance perfectly matches your actual needs.

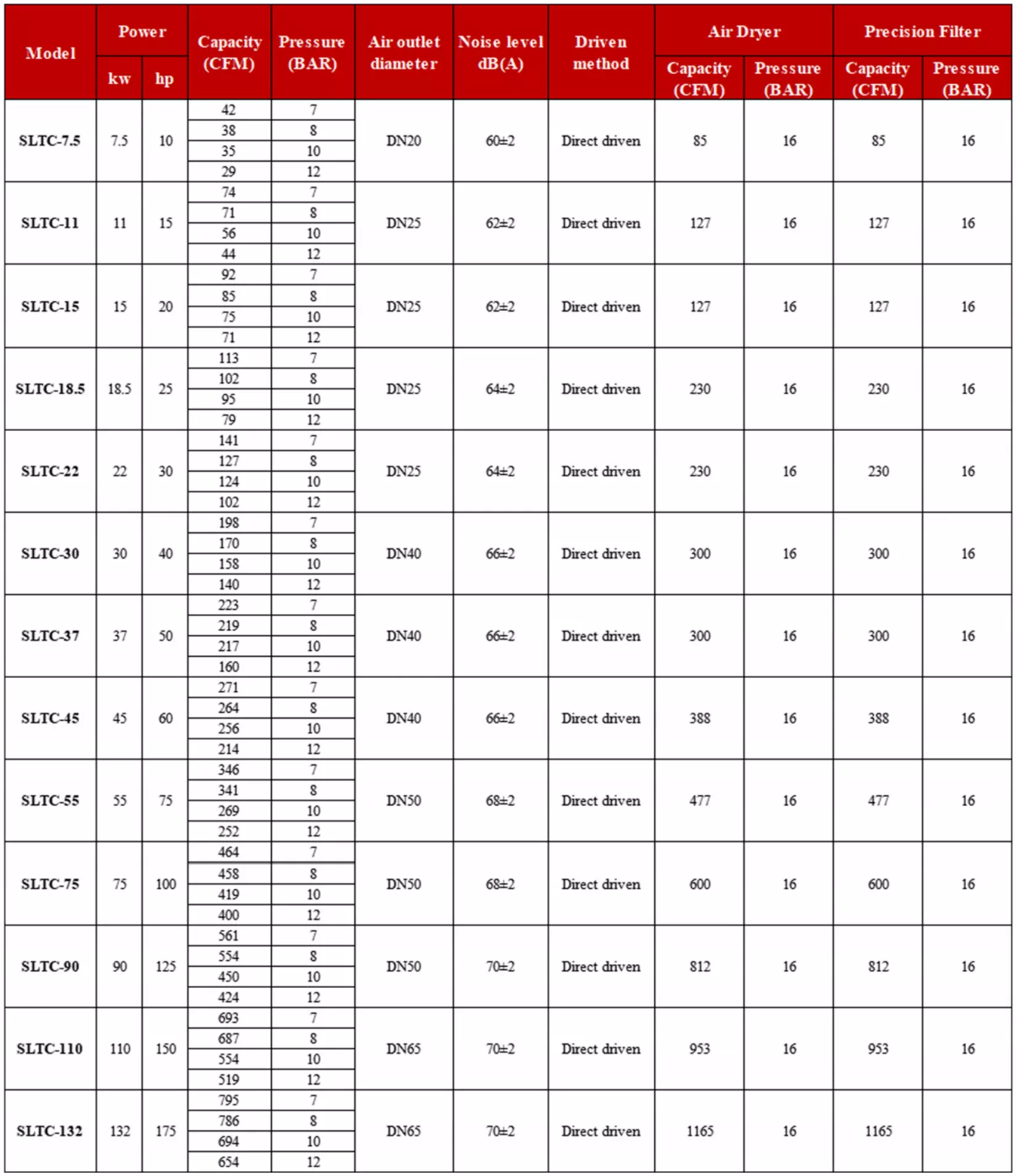

4.1 Core Parameter Considerations

Free Air Delivery (FAD): This is one of the most important parameters, representing the standard air volume the compressor can produce per minute (usually expressed in L/min or m³/min). You need to accurately calculate the total air volume requirements of all pneumatic equipment and allow for a certain margin (usually 20%-30%) to accommodate future expansion or equipment aging.

Working Pressure: The maximum continuous working pressure the compressor can provide (usually expressed in Bar or Psi). Ensure the selected compressor can meet the highest pressure requirements of your pneumatic equipment.

Pressure Dew Point (PDP): This is a key indicator of the dryness of compressed air.

2°C – 10°C Dew Point: For most industrial applications, such as general machining, spraying, and pneumatic tools, a refrigerated dryer is sufficient.

-20°C to -70°C Dew Point: Industries with high dryness requirements, such as food, pharmaceuticals, electronics, precision instruments, and outdoor pipeline antifreeze, must choose adsorption dryers.

Power Requirements: Ensure the compressor’s voltage, frequency, and number of phases are compatible with your factory’s power supply system.

Noise Level: If installed near a work area or in an environment with noise requirements, choose a low-noise or silent compressor.

Cooling Method:

Air Cooling: Suitable for most environments, easy to install.

Water Cooling: Suitable for high-temperature and high-humidity environments, or applications requiring heat recovery for other uses, offering higher cooling efficiency.

Gas Tank Capacity: A suitable gas tank capacity can balance the compressor’s start-stop frequency, stabilize the gas supply pressure, and provide a buffer when instantaneous gas demand increases.

4.2 Rebalancing the Selection of Drying Technology

Refrigeration vs. Adsorption: These have been described in detail above; the key is your dew point requirements. If your application has less stringent dryness requirements and a limited budget, a refrigerated dryer is an economical and efficient choice; if extremely high or very high dryness requirements are needed, an adsorption dryer is the only option.

Regeneration Method: For adsorption dryers, the choice between heatless, slightly heated, or forced-air heated regeneration requires weighing energy consumption, regeneration gas loss, initial investment, and maintenance costs. While forced-air heated regeneration has a higher initial investment, its long-term operating costs may be lower because it does not consume dried compressed air.

4.3 Additional Functions and Configurations

Variable Frequency Technology (VSD/VSD+): Variable frequency compressors automatically adjust the motor speed according to actual air volume demand, significantly reducing no-load energy consumption, especially suitable for operating conditions with large fluctuations in air volume demand, resulting in significant energy savings.

Intelligent Control System: Modern compressors are typically equipped with PLC controllers and touchscreens, providing remote monitoring, fault diagnosis, and operating data recording functions for easy management and maintenance.

Oil-Water Separator and Filter Grade: Ensure that the filter grade of the selected equipment meets the air cleanliness requirements of your process.

Heat recovery system: Some high-end compressors can recover the heat generated during compression to heat water or other production processes, further improving energy efficiency.

Remote monitoring and IoT functionality: Facilitates remote management, fault warning, and data analysis.

4.4 Brand and After-sales Service

Choose a reputable brand: Internationally or domestically renowned brands typically possess more mature technology, more reliable product quality, and a more comprehensive after-sales service network.

After-sales service: Understand the supplier’s after-sales service policy, including spare parts supply, technical support, and regular maintenance, to ensure long-term stable operation of the equipment.

Chapter 5: Daily Maintenance and Optimization of air compressor with dryers

Even the most advanced equipment requires proper and scientific maintenance. Correct maintenance not only extends equipment lifespan but also ensures continuous and efficient operation.

5.1 Daily Inspection and Cleaning

Check the drain: Check the automatic drain daily to ensure it is functioning correctly and drains moisture promptly.

Check pressure gauges and dew point indicators: Observe the readings of all pressure gauges daily to ensure they are normal and check that the dew point indicator is within the expected range.

Clean the cooler: Regularly check and clean the coolers of the compressor and dryer to ensure efficient heat dissipation and prevent overheating.

Check for leaks: Regularly check pipes, joints, and valves for leaks and repair them promptly to reduce energy waste.

5.2 Regular Replacement of Consumables

Filter cartridges: Replace all levels of filter cartridges in the compressor and dryer regularly according to the manufacturer’s recommendations or actual operating conditions (differential pressure indication). This is crucial for ensuring air cleanliness.

Desiccant (Adsorption Dryer): The desiccant in an adsorption dryer typically has a limited lifespan and needs to be replaced after reaching its end to maintain drying effectiveness.

Lubricating Oil (Oil-Coated Compressors): Change the compressor lubricating oil regularly based on operating hours or manufacturer recommendations.

5.3 Fault Diagnosis and Prevention

Pay attention to alarm information: Modern compressors typically have comprehensive fault alarm systems. Check and handle alarms promptly.

Establish maintenance records: Record equipment operating time, maintenance history, consumable replacement dates, etc., for easy tracking and planning.

Professional maintenance: It is recommended to regularly invite professional service engineers for comprehensive inspection and maintenance.

5.4 Energy Efficiency Optimization

Optimize system layout: Minimize pipe length, reduce bends and joints, and reduce pressure loss.

Precisely match air volume: Ensure the compressor’s discharge capacity matches actual demand, avoiding overloading and improving load efficiency. Variable frequency compressors excel in this aspect.

Heat recovery: If your production process requires hot water or hot air, consider installing a heat recovery system to utilize the heat generated by the compressor, further reducing energy costs.

Conclusion: Clean Air Strategy for the Future

In the wave of Industry 4.0 and smart manufacturing, the requirements for the precision of production environment control and product quality will only increase. air compressor with dryers, as core equipment for providing high-quality clean compressed air, have undeniable strategic value. They are not merely an investment, but a crucial cornerstone for your company’s future growth and enhanced core competitiveness.

Say goodbye to the many problems caused by impure compressed air by choosing a high-performance, easy-to-maintain air compressor with a built-in dryer. It will create a stable, efficient, and reliable production environment for you, ensuring your products maintain a leading edge in the market and allowing your company to thrive and achieve long-term success in the fiercely competitive market!
